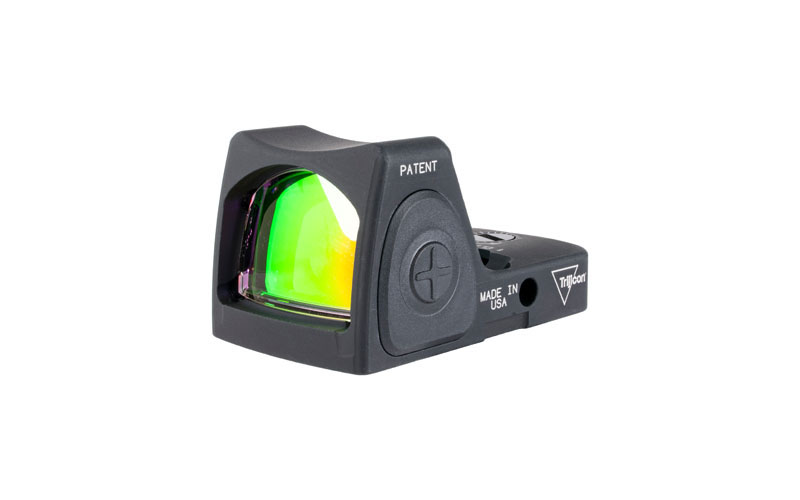

RMR - Adjustable LED
The Trijicon RMR Type 2 Adjustable LED – offering maximum control, the Adjustable LED model includes eight brightness settings (two night-vision compatible) and simple side buttons for manual or automatic modes. Manual settings hold for 16.5 hours before reverting to auto, and a lock-out option ensures automatic-only operation when needed. Available in three dot sizes for ultimate versatility.
Trijicon RMR Type 2 Adjustable LED
Dot Sizes
1.0 MOA, 3.25 MOA, 6.5 MOA
Brightness Settings
8 levels (2 NV‑compatible), manual or auto, with 16.5 hr hold in manual; lock‑out option
Battery
CR2032 lithium (top-loading), ~4 years continuous use
Housing
Forged 7075‑T6 aluminium; waterproof to 20 m
Dimensions (L×W×H)
46 × 30 × 25 mm approx.
Weight
~33 g (1.17 oz)
Adjustments
1 MOA per click; 150 MOA total travel
Lens
Tempered glass, true‑colour multi‑coated
The Trijicon RMR Type 2 Adjustable LED – offering maximum control, the Adjustable LED model includes eight brightness settings (two night-vision compatible) and simple side buttons for manual or automatic modes. Manual settings hold for 16.5 hours before reverting to auto, and a lock-out option ensures automatic-only operation when needed. Available in three dot sizes for ultimate versatility.
Trijicon RMR Type 2 Adjustable LED
| Dot Sizes | 1.0 MOA, 3.25 MOA, 6.5 MOA |
| Brightness Settings | 8 levels (2 NV‑compatible), manual or auto, with 16.5 hr hold in manual; lock‑out option |
| Battery | CR2032 lithium (top-loading), ~4 years continuous use |
| Housing | Forged 7075‑T6 aluminium; waterproof to 20 m |
| Dimensions (L×W×H) | 46 × 30 × 25 mm approx. |
| Weight | ~33 g (1.17 oz) |
| Adjustments | 1 MOA per click; 150 MOA total travel |
| Lens | Tempered glass, true‑colour multi‑coated |

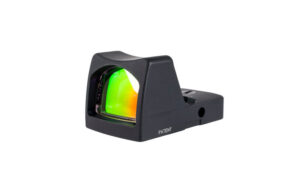

RMR - Automatic LED
The Trijicon RMR Type 2 Automatic LED – engineered for durability, the RMR Type 2 features a patented housing that absorbs impact and protects the lens. Its automatic brightness sensor adjusts the red dot to suit ambient light, making it ideal for military, law enforcement, concealed carry, target shooting, and hunting. The 3.25 MOA dot offers the perfect balance—precise at range yet quick to acquire.
Trijicon RMR Type 2 Automatic LED
Dot Sizes
3.25 MOA most common; other options available
Brightness Settings
Automatic only
Battery
CR2032 lithium, ~2 years typical use
Housing
Forged 7075‑T6 aluminium; waterproof to 20 m
Dimensions
Like Adjustable model (≈46×30×25 mm)
Weight
~33 g (1.17 oz)
Adjustments
1 MOA per click; 150 MOA total travel
Lens
Tempered glass, true‑colour multi‑coated
The Trijicon RMR Type 2 Automatic LED – engineered for durability, the RMR Type 2 features a patented housing that absorbs impact and protects the lens. Its automatic brightness sensor adjusts the red dot to suit ambient light, making it ideal for military, law enforcement, concealed carry, target shooting, and hunting. The 3.25 MOA dot offers the perfect balance—precise at range yet quick to acquire.
Trijicon RMR Type 2 Automatic LED
| Dot Sizes | 3.25 MOA most common; other options available |
| Brightness Settings | Automatic only |
| Battery | CR2032 lithium, ~2 years typical use |
| Housing | Forged 7075‑T6 aluminium; waterproof to 20 m |
| Dimensions | Like Adjustable model (≈46×30×25 mm) |
| Weight | ~33 g (1.17 oz) |
| Adjustments | 1 MOA per click; 150 MOA total travel |
| Lens | Tempered glass, true‑colour multi‑coated |

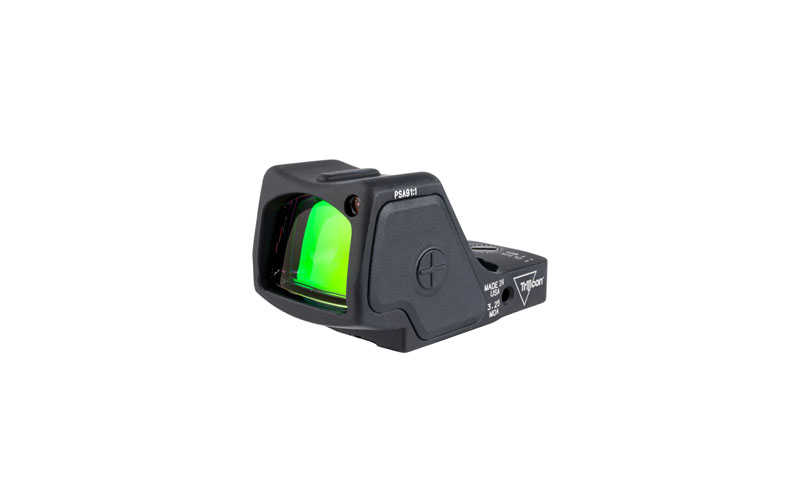

RMR HD
The Trijicon RMR HD Reflex Sight is designed for law enforcement and military use, the RMR HD builds on the proven RMR platform with a larger window, top-loading battery, advanced light sensor, and multiple reticle options. It offers superior brightness control, night-vision compatibility, tactile buttons, and an expanded field of view. With the same footprint as the RMR, it fits most duty holsters and delivers outstanding reliability and performance.
Trijicon RMR HD Reflex Sight
Reticle Options

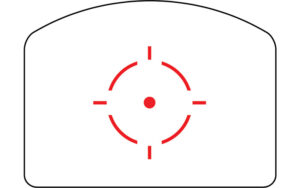

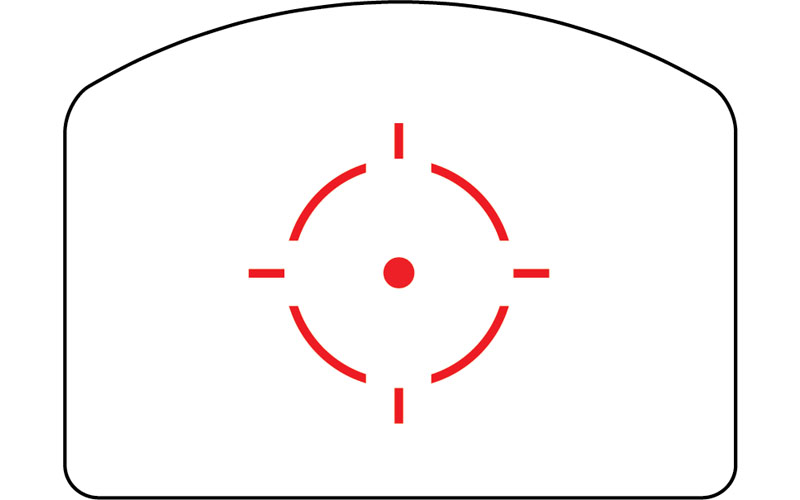

Simple dot or complex reticle with super-bright and night‑vision modes
Brightness Settings
9 selectable levels; auto brightness sensor adjustable per user
Battery
CR2032 lithium top-loading; up to 4 years life
Housing
Forged 7075‑T6 aluminium; waterproof to 20 m
Window
Larger field of view than standard RMR
Adjusters & Buttons
Larger tactile buttons; tool‑free windage/elevation with audible feedback
Footprint
Same as RMR; fits most duty holsters
The Trijicon RMR HD Reflex Sight is designed for law enforcement and military use, the RMR HD builds on the proven RMR platform with a larger window, top-loading battery, advanced light sensor, and multiple reticle options. It offers superior brightness control, night-vision compatibility, tactile buttons, and an expanded field of view. With the same footprint as the RMR, it fits most duty holsters and delivers outstanding reliability and performance.
Trijicon RMR HD Reflex Sight
| Reticle Options | Simple dot or complex reticle with super-bright and night‑vision modes |
| Brightness Settings | 9 selectable levels; auto brightness sensor adjustable per user |
| Battery | CR2032 lithium top-loading; up to 4 years life |
| Housing | Forged 7075‑T6 aluminium; waterproof to 20 m |
| Window | Larger field of view than standard RMR |
| Adjusters & Buttons | Larger tactile buttons; tool‑free windage/elevation with audible feedback |
| Footprint | Same as RMR; fits most duty holsters |

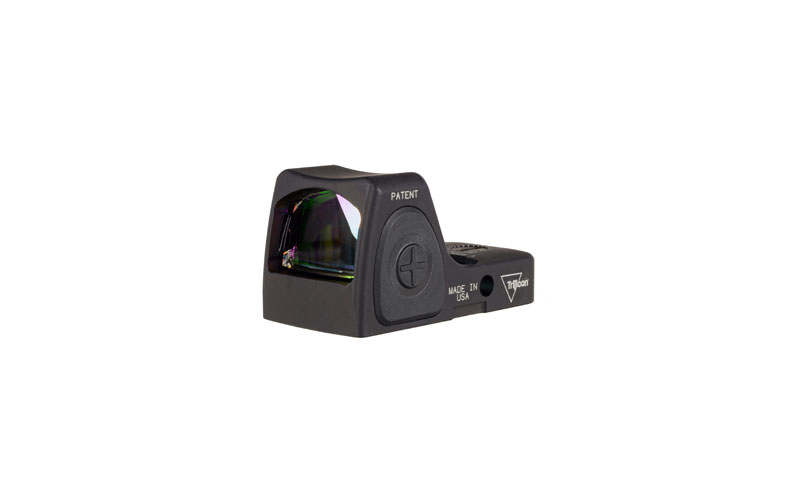

RMRcc
The Trijicon RMRcc Reflex Sight – compact and rugged, the RMRcc is designed for concealed carry and smaller pistols. It features the same proven durability and performance as the RMR series, with a slimmer profile for easier holstering and improved concealment. Automatic brightness adjustment ensures a clear aiming point in any light, while its lightweight design delivers fast, accurate target acquisition without compromising reliability.
Trijicon RMRcc Reflex Sight
Dot Sizes
3.25 MOA or 6.5 MOA
Brightness Settings
8 levels (1 super‑bright, 2 NV) + auto; lock-in and lock‑out modes
Battery
CR2032 lithium, up to 4 years
Housing
Forged 7075‑T6 aluminium; waterproof to 20 m
Dimensions
~46 × 24 × 25 mm (1.8 × 0.95 × 1.0 in)
Weight
Not specified; compact & lightweight
Adjustments
3 MOA per click; 150 MOA total travel
Footprint
Unique cc footprint; fits popular compact pistols with dedicated plates
The Trijicon RMRcc Reflex Sight – compact and rugged, the RMRcc is designed for concealed carry and smaller pistols. It features the same proven durability and performance as the RMR series, with a slimmer profile for easier holstering and improved concealment. Automatic brightness adjustment ensures a clear aiming point in any light, while its lightweight design delivers fast, accurate target acquisition without compromising reliability.
Trijicon RMRcc Reflex Sight
| Dot Sizes | 3.25 MOA or 6.5 MOA |
| Brightness Settings | 8 levels (1 super‑bright, 2 NV) + auto; lock-in and lock‑out modes |
| Battery | CR2032 lithium, up to 4 years |
| Housing | Forged 7075‑T6 aluminium; waterproof to 20 m |
| Dimensions | ~46 × 24 × 25 mm (1.8 × 0.95 × 1.0 in) |
| Weight | Not specified; compact & lightweight |
| Adjustments | 3 MOA per click; 150 MOA total travel |
| Footprint | Unique cc footprint; fits popular compact pistols with dedicated plates |
