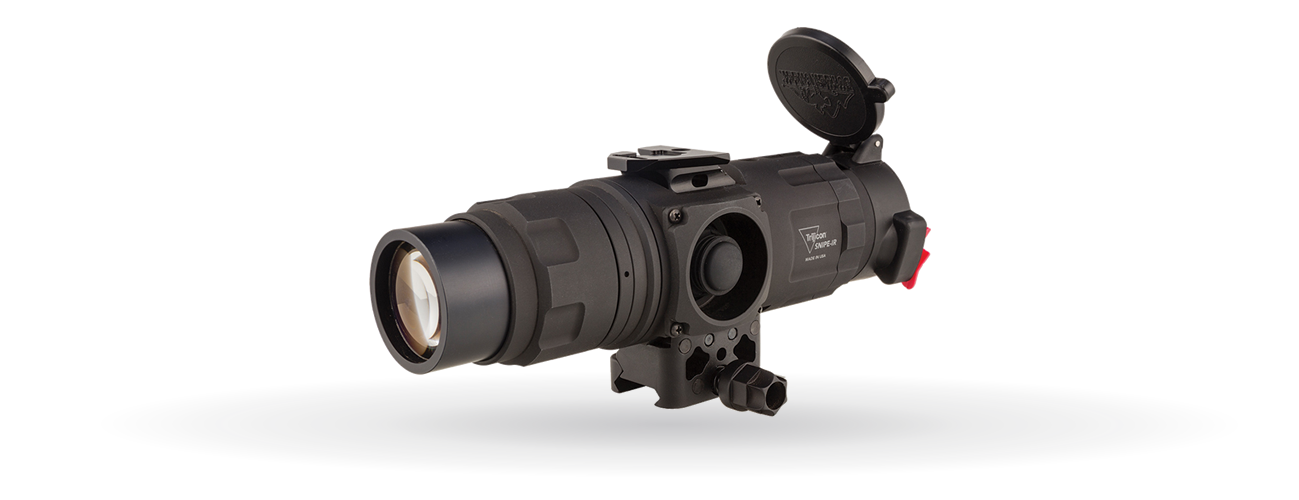

Trijicon SNIPE-IR Thermal Clip-On
The Next-Generation Thermal Clip-On sight for 24 hour domination in any light - The Trijicon SNIPE-IR® is designed to become one with your optical day sight, both on the battlefield and on the hunting field. The thermal scope's NO-SHOT ZERO feature makes it simple to verify boresight when attached.
Trijicon IRD Weapon Sights – Trijicon SNIPE-IR Thermal Clip-On
THUMBSTICK SYSTEM CONTROLLER
Our fully ruggedized, weatherproof, multidirectional thumbstick control comes standard. Unlike most conventional buttons, the SNIPE-IR controls are large and easy to find in complete darkness.
NO-SHOT ZERO SIGHT-IN SEAMLESS INTEGRATION
The SNIPE-IR’s NO-SHOT ZERO feature makes it simple to verify boresight when attached. And it offers easy sight-in integration for accurate calibrations with the 4×32 ACOG® and 3x and 4x day optics, as well as a large range of variable rifle sights.
VISRELAY COLLIMATING OPTIC
The SNIPE-IR offers a VisRelay Collimating Optic that eliminates parallax, making it the ideal choice for a 24-hour weapon sighting system.
MAXPOL POLARITY WHITE HOT/BLACK HOT
The SNIPE-IR™ comes with an easy-to-control polarity mode that lets you switch between three levels of white hot and three levels of black hot. Why limit yourself to one setting? With low, medium and high levels, you can pick your perfect mode.
DIGITAL FOCUS CONTROL IMAGE ENHANCEMENT
Digital Focus Control (DFC) allows you to not only focus your picture to your optimum setting; it allows you to sharpen your overall picture for extreme detail.
SENSOR TYPE Uncooled VOx (Vanadium Oxide)
THERMAL SENSITIVITY <50mk
SENSOR RESOLUTION 640×480 pixels
SENSOR PITCH 12 Micron
FRAME RATE 60 Hz with a 30 Hz Power Save Mode
SPECTRAL RESPONSE 8 – 12 Microns
DISPLAY TYPE Digital OLED – 640×480 pixels
FIELD OF VIEW 12° Horizontal
SYSTEM MODES CLIP-ON / HYBRID / DEDICATED
BASIC FEATURES E-Zoom, Polarity
ADVANCED FEATURES NO-SHOT ZERO
Image Capture DFC – Digital Focus Control
START-UP TIME Approx. 5 Seconds
VIDEO OUTPUT Analog RS-170 (with Optional Cable)
BATTERY TYPE 2 x CR123
BATTERY LIFE 3.5 Hours @ 60 Hz
WEAPON MOUNT Mini D–LOC Mount – Standard Model
DAY SIGHT COMPATIBILITY
1x up to 4x Fixed Sights
1-4x and 1-6x Variable Sights
2.5-10x up to 4-12x Variable Sights
WEIGHT 24.6 oz (700 grams)
DIMENSIONS 7.4″ L x 3.0″ H x 2.95″ W
EXIT PUPIL 30mm clip-on
ENVIRONMENTAL
-40c to +55c Operating
-45c to +75c Storage

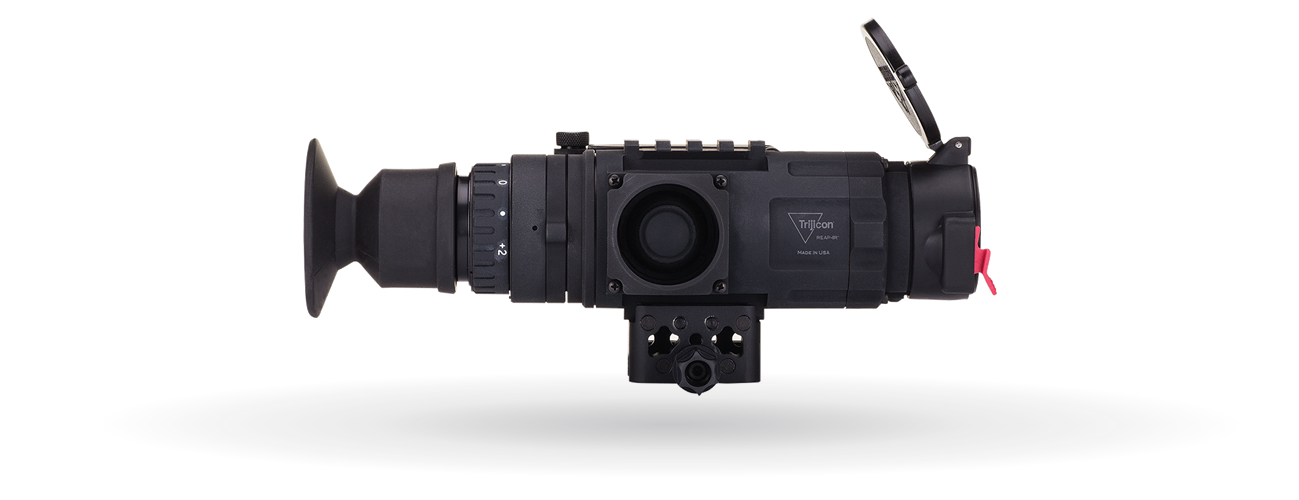

Trijicon REAP-IR Mini Thermal Riflescope
Get rounds on target faster than ever. The Trijicon REAP-IR® mini thermal riflescope is a small, light, powerful thermal riflescope that lets you engage targets in any light. It is powered by the new FLIR Boson core, and packs several features, such as crisp image, onboard recording and seven palettes to give a tactical advantage by fast detection of suspects or evidence, day and night.The Skeet IR x is one of the smallest, lightest tactical thermal imager on the market. It weighs just 9 ounces, giving users the ability to rapidly acquire targets while reducing the weight they need to carry into operation. It also uses less power than traditional cooled systems, operating more than two hours to help reduce the extra weight of battery loads. Using just a single CR123 battery, the system has the power to produce a 640 x 480 resolution thermal image of the operational area – day or night. The SkeetIR x is easily and intuitively used with one hand, making it simple to locate the various functions, especially while operating the system in darkness. The system also enables the use of inherent weapons and user selectable electronic reticles to support a wide range of missions.
Trijicon IRD Weapon Sights – Trijicon REAP-IR Mini Thermal Riflescope
THUMBSTICK SYSTEM CONTROLLER
Fully ruggedized, weatherproof, multi-directional thumbstick control.
STADIAMETRIC RANGING
Determine your distance at a moment’s notice.
RETICLE DIGITAL READOUTS
Displays your current reticle position in the lower-left corner of the screen.
EDGE DETECT MODE
Puts out a fraction of the light of other modes to reduce night blindness from the screen.
RUGGEDIZED BATTERY COMPARTMENT*
Top-loading battery compartment is designed for fast and easy battery changes even in the harshest conditions.
PICATINNY RAIL INTERFACE*
Integral picatinny top rail for accessory mounting.
640×480 THERMAL SENSOR
Offers clear, crisp imagery through smoke, dust and complete darkness.
12 MICRON TECHNOLOGY
Smaller image sensors allow for reduced size and weight and increased durability.
EASY ZERO*
Intuitive “easy zero” method gets rounds on target faster than ever.

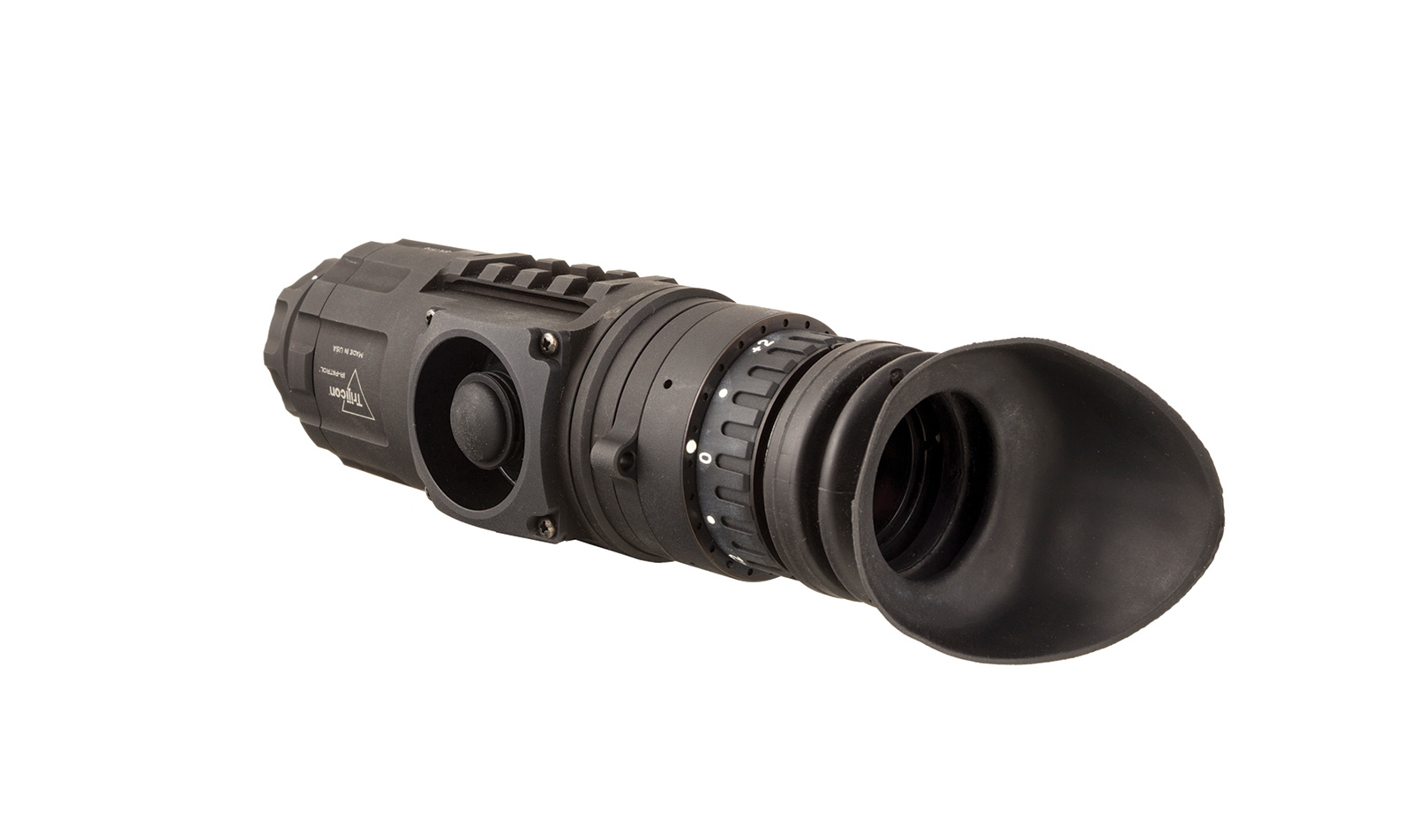

Trijicon IR-PATROL Thermal Monocular
The IR-PATROL has advanced ability to process images with brilliantly sharp detail, and a user-friendly, icon-based menu system for intuitive navigation. Whether your mission is searching for a suspect or securing your position, the Trijicon IR-PATROL® is the ideal multipurpose thermal imaging monocular. It's compact, lightweight, rugged and offers some of the most advanced performance options on the market. Choose from handheld, helmet-mounted or rifle-mounted IR‑PATROL systems.
Trijicon IRD Weapon Sights – Trijicon IR-PATROL Thermal Monocular
HANDS-FREE OBSERVATION
With the IR-PATROL M250, you can take advantage of the lightweight design and fast, 60 Hz frame-rate system that is optimized for helmet mounting. The optional Wilcox adapter kit makes it easy to fit the system on most helmets.
RIFLE-MOUNTED MODE
The IR-PATROL M300W comes ready as a dedicated thermal mini sight. With the optional Wilcox flip mount, it allows for fast attachment and detachment to any Picatinny rail.
THUMBSTICK SYSTEM CONTROLLER
The fully ruggedized, weatherproof, multidirectional thumbstick control comes standard. Unlike most conventional buttons, the IR-PATROL controls are large and easy to find in complete darkness
AFOCAL MAGNIFIER LENS MULTIPLIERS
The optional 2x and 3x Afocal Magnifiers provide an easy, cost-effective way to get long-range magnification. By using an Afocal Magnifier, your system will double or triple its lens magnification, depending upon the magnifier you purchase.
EDGE DETECT TACTICAL MODE
This is an entirely new way to view your target with more precision. Edge Detect Mode is a fraction of the brightness of other modes so your eyes are not as prone to night blindness from the screen.
MAXPOL POLARITY WHITE HOT/BLACK HOT
The IR-PATROL® comes with an easy-to-control polarity mode that lets you switch between three levels of white hot and three levels of black hot. Why limit yourself to one setting? With low, medium and high levels, you can pick your perfect mode
PATROL LE100 HANDHELD SCOPE
SYSTEM FEATURES
ADVANCED THUMBSTICK CONTROLLER
30 HZ FRAME RATE
19MM OBJECTIVE LENS
MAXPOL
E-ZOOM
DFC DIGITAL FOCUS
PATROL LE100C HANDHELD SCOPE WITH IMAGE CAPTURE
SYSTEM FEATURES
ADVANCED THUMBSTICK CONTROLLER
30 HZ FRAME RATE
19 MM OBJECTIVE LENS
MAXPOL
E-ZOOM
DFC DIGITAL FOCUS
IMAGE CAPTURE FEATURE
INCLUDES DOWNLOAD CABLE
INCLUDES DOWNLOAD PC SOFTWARE
PATROL M250 HELMET‑MOUNTED SYSTEM (M250)
SYSTEM FEATURES
60 HZ FRAME-RATE SYSTEM
MAXPOL/E-ZOOM/DFCV
IMAGE CAPTURE
EDGE DETECT MODE
IRMO-250 INCLUDES WILCOX SHOE INTERFACE
IRMO-250K INCLUDES WILCOX SHOE INTERFACE AND BRIDGE MOUNT
PATROL M300W RIFLE‑MOUNTED SYSTEM (M300w image)
SYSTEM FEATURES
60 HZ FRAME-RATE SYSTEM
MAXPOL/E-ZOOM/DFC
IMAGE CAPTURE WITH DOWNLOAD CABLE
EDGE DETECT MODE
IRMO-300 INCLUDES WILCOX SHOE INTERFACE
IRMO-300K INCLUDES WILCOX SHOE INTERFACE AND SIDE-FLIP MOUNT
IRMO-300TK INCLUDES WILCOX SHOE INTERFACE, SIDE-FLIP MOUNT, AND BRIDGE MOUNT
PATROL M250XR EXTENDED RANGE SCOPE (M250XR)
SYSTEM FEATURES
60 HZ FRAME-RATE SYSTEM
60MM F/1.25 OBJECTIVE LENS
WHITE HOT/BLACK HOT POLARITY LEVELS
4.5 OPTICAL ZOON/8X DIGITAL ZOOM
STADIAMETRIC RANGEFINDER
SENSOR TYPE: Uncooled VOx (Vanadium Oxide)
THERMAL SENSITIVITY: <50mk
SENSOR RESOLUTIO: 640×480
SENSOR PITCH: 12 Micron
FRAME RATE: 60 Hz M250 / M300W
30 Hz LE100 / LE100C
SPECTRAL RESPONSE: 8 – 12 Microns
DISPLAY TYPE: Monochrome Digital OLED
DISPLAY RESOLUTION: 640×480 pixels
BASIC FEATURES: E-Zoom, Polarity, DFC
ADVANCED FEATURES DCE: – Digital Contrast Enhancement
Edge Detection Mode
START UP TIME: Approx. 5 Seconds
VIDEO OUTPUT: Analog RS-170 (with Optional Cable)
BATTERY TYPE: 1 each CR123 3 volt
2 each with adapter
BATTERY LIFE:
1 – 1.5 Hours @ 60 Hz
1 – 2 Hours @ 30 Hz
2 – 3.5 Hours @ 60 Hz
2 – 5 Hours @ 30 Hz
HELMET MOUNT: Used with Model M250 and M300W
Part No. IRDMNT-9974
WEAPON MOUNT: Used with Model M300W
Part No. IRDMNT-9971
WEIGHT: 454 grams (LE100)
DIMENSIONS: 5.95” L x 2.0” H x 2.95” W
LE100/LE100C
DIOPTER: -6 / +2
EYE RELIEF: 27mm
ENVIRONMENTAL :-40c to +55c Operating
-45c to +75c Storage
