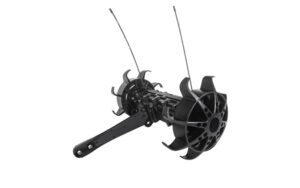

Throwbot 2
The Throwbot 2 (TB2) robot is a throwable micro-robot platform that allows operators to conduct quick video and audio reconnaissance in both indoor and outdoor areas. The Throwbot 2 robot, designed to endure repeated drops of up to 30 feet (9 m) onto concrete, may be hurled into dangerous situations, allowing operators to make quick, educated decisions when seconds count.
RANGE
Outdoor Range (LOS): Tested to 450ft / 137m
Indoor Range (NLOS): Tested to 150ft / 45m
Drop Shock Resistance: 30ft / 9.1m
Throw Throw Resistance: 120ft / 36m
Max Obstacle Climb: 2in / 5cm
Speed: 1.8ft/s / 0.6m/s
Payload Capacity: NONE
IMAGE SENSOR
Type: Colour
Field of View: 60 degrees
Frame Rate: 30fps
Water/Dust Protection: IP66, IP67
IR Illumination: 25ft / 7.62m
Audio: One-way, listening only
RUN TIME
Typical: 110 minutes
Observation Mode: 160 minutes
Weight: 1.3lbs / 0.6kg
Length: 8.3in / 21.1cm
Width: 7.9in / 20.1cm
Height: 4.5in / 11.4cm
Payload: 6.6 lbs / 2.4 kg
Flight Time: 45 minutes (no payload)
Dimensions: 45″ L x 44″ W x 12″ H
