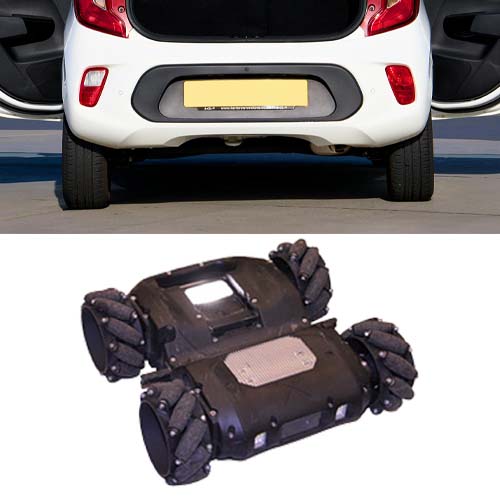

Nexter Robotics NERVA LG UGV Payloads – Under-Vehicle Inspection. An advanced under-vehicle inspection payload designed to enhance security by providing high-resolution imaging and automated detection of threats or anomalies beneath vehicles.

Nexter Robotics NERVA LG UGV Payloads – Chemical Sensor. This module has a μ-camera and dedicated functionality for capturing sensor displays and embedding them in the control station’s video. Use your own hazardous materials detector on your robot, including MultiRAE, Smith Detection, Radiac, TIC, TIM, VOC, Radiological, and Temperature/Humidity.

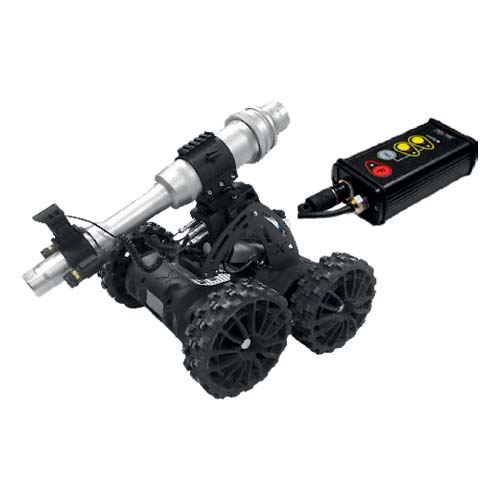

Nexter Robotics NERVA LG UGV Payloads – Disruptor. The Disruptor is used for explosive ordnance or threat disposal. EOD and IEDD capabilities.

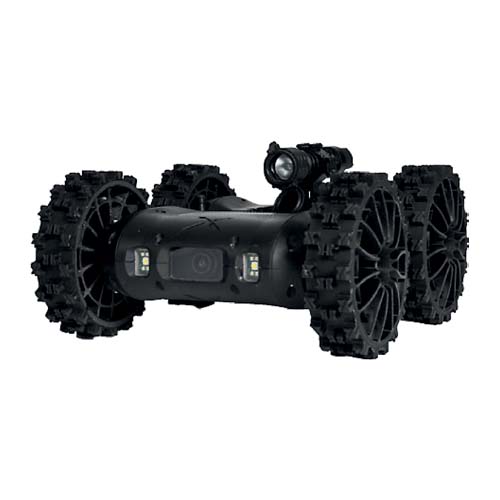

Nexter Robotics NERVA LG UGV Payloads – Standard module, 1-click plug & play, with a short picatinny rail that can be fitted with any compatible equipment, including an IR lamp or visible light producer, laser designator, rangefinder, and more.

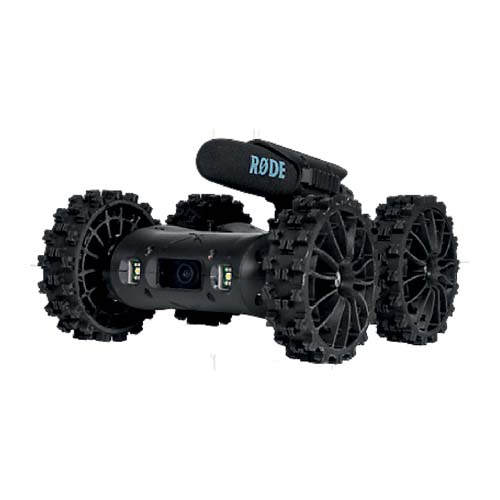

Nexter Robotics NERVA LG UGV Payloads – 2-Way Intercom Audio. Users, often Police, first responders or SAR teams can use this module to communicate remotely with a third party. It combines a high-sensitivity microphone with a powerful speaker, which means that it can also play pre-recorded sounds or messages. This PTZ camera also comes in a day/night variant (colour and thermal images). The PTZ camera is intended for long-distance surveillance, licence plate detection, and other applications.

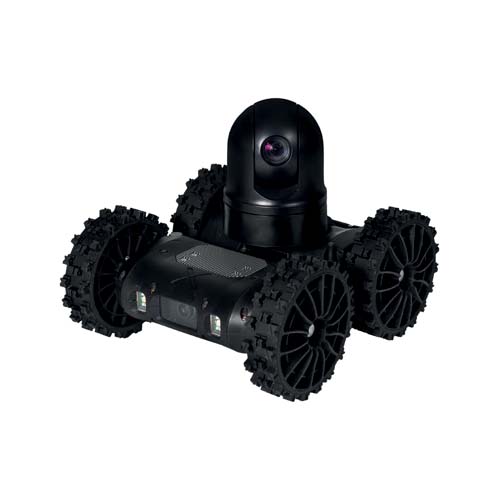

Nexter Robotics NERVA LG UGV Payloads – PTZ Camera. Motorised observation PTZ  (pan, tilt, zoom) camera with two axes Site: -30° / +90° Bearing: 360 degrees. The rotation speed is 50° per second. High sensitivity daytime camera Optical zoom: 36x. This PTZ camera also comes in a day/night variant (colour and thermal images). The PTZ camera is intended for long-distance surveillance, licence plate detection, and other applications.

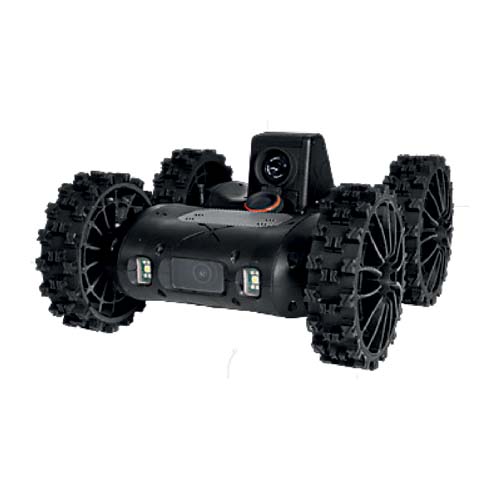

Nexter Robotics NERVA LG UGV Payloads – Thermal Camera. 8-12 μm band, Uncooled imager, 640 x 480 pixel resolution
Thermal sensitivity < 50 mK, Frequency: 9 Hz (standard; 25 Hz on request but ITAR licence required), Focal length to be specified at time of order, available from 7.5mm to 25mm. Horizontal field of view from 90° to 25° respectively. NERVA-LG Plug & Play

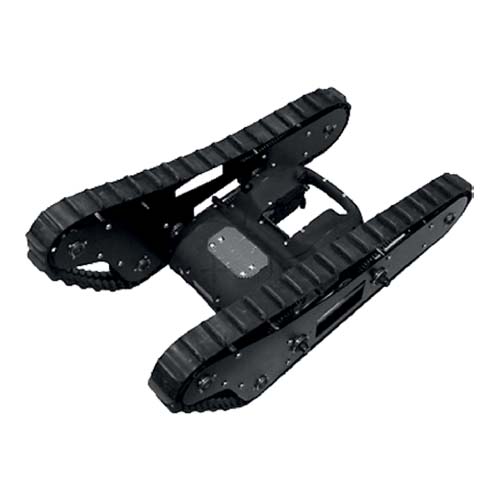

Nexter Robotics NERVA LG UGV Payloads -Tracks kit designed for climbing stairs and navigating in urban environments – negotiating pavements, curbs, steps, etc.). Fitted with just 1-click. Can be completed in the field, with no special tools or equipment.

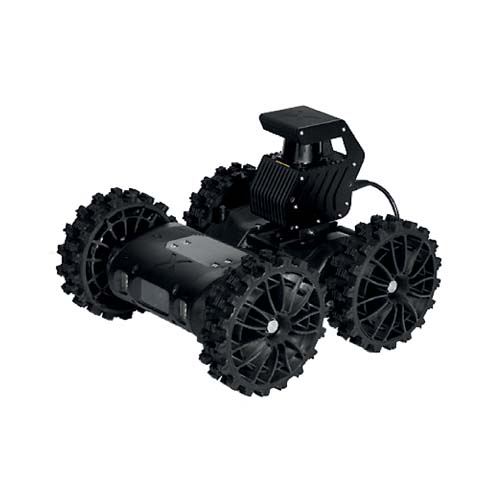

Nexter Robotics NERVA LG UGV Payloads. The 2D Mapping payload provides the NERVA-LG with a fully automated mapping and exploration capability. Placed in any location, the robot explores the entire space and builds a 2D map, as it goes. The subsequent map is stored and displayed on the Command and Control Station.  The plotted map can be used to identify areas to further explore and guide the NERVA-LG to them. Allows entry of waypoints and patrol paths. Input waypoints can trigger automatic activities such as taking a picture, or recording a video.

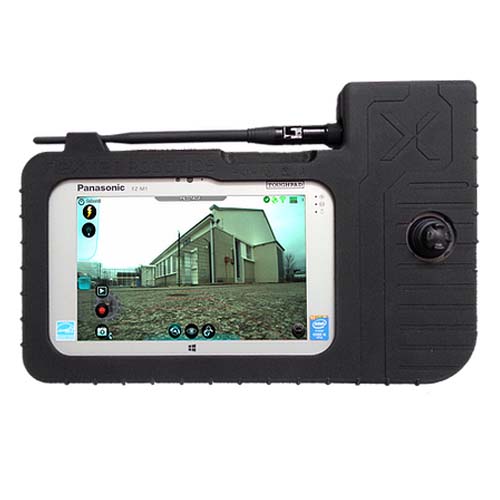

The Nerva LG Command Controller is a centralized interface that enables operators to efficiently manage, monitor, and control Nerva LG inspection systems, ensuring streamlined security operations and rapid response to detected threats.
