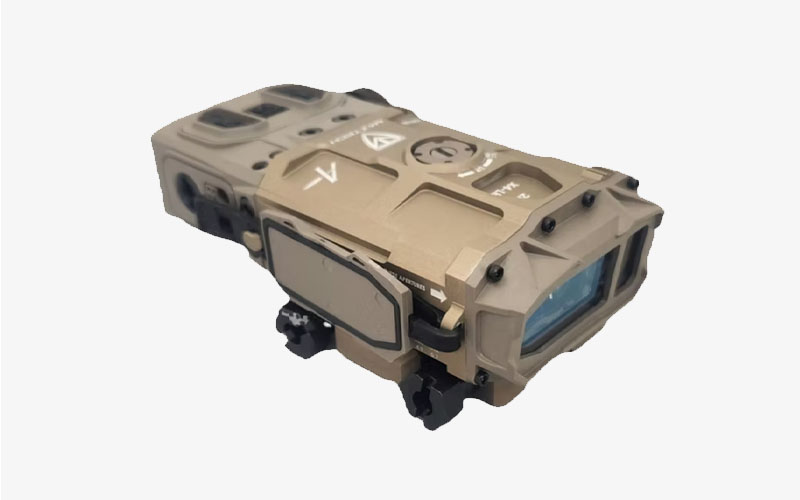

X4-LRF Laser Range Finder
The ground breaking laser rangefinder with precise ranging and integrated ballistic solver. The Maztech X4-LRF is a high-performance ranging laser with co-aligned visible and infrared aiming lasers. Combined with an integrated Applied Ballistics® solver and on-board environmental and motion sensors, it gives you a complete ranging and ballistics solution all in one compact, rugged package.
- Large format display; readable in full sunlight with polarised glasses
- Designed to meet MIL-STD-810 environmental specs
- Accurate ranging for commercial and military applications
- Manufactured from solid billet aircraft-grade 7075-T6 aluminium
- Designed and manufactured in the USA
Maztech X4-LRF Laser Range Finder
Rangefinding Laser:
2K Variant – 905 nm
15K & 15M Variants – 1534 nm
Co-Aligned Auxiliary Lasers:
Visible Aim Laser (Red 660 nm)
IR Aim Laser (842 nm)
Rail Mount:
STANAG 4694 (Compatible with STANAG 2324 / Picatinny MIL-STD-1913)
Integrated Ballistics Solver:
Applied Ballistics® Solver with On-Board Motion and Environmental Sensors
Weight:
2K Variant – 12.3 oz (348 g) with battery
15K & 15M Variants – 12.9 oz (367 g) with battery
Dimensions (L,W,H):
5.2 in. x 2.8 in x 1.8 in (133 mm x 72 mm x 47 mm)
Battery Type:
Supplied – CR123A (Rechargeable USB-C)
Wireless Connectivity:
Bluetooth® Low Energy and Ultra-Wideband (UWB).
Each can be disabled.
Temperature Rating:
-40°F to 140°F (-40°C to 60°C) subject to appropriate temperature-rated batteries
External Colour:
Flat Dark Earth
X4-LRF-2K
A rugged multi-pulse laser rangefinder with integrated co-aligned pointers and a built-in weather station.
X4-LRF-15K
Engineered to provide ultimate range to target capability with instantaneous reliable returns in the same compact package. Ideal for competition shooters.
X4-LRF-15M
High-power aiming designed exclusively for Military and Law Enforcement partners.
X4-LRF-2K
X4-LRF-15K
X4-LRF-15M
Maximum Range
2,180 yds / 2,000m
16,400 yds / 15,000m
16,400 yds / 15,000m
Aim Laser Power – VISIBLE
4.9 mW visible
4.9 mW visible
70.0 mW visible
Aim Laser Power – IR
0.7 mW IR
0.7 mW IR
40.0 mW IR
Laser Class
Class 3R laser product
Class 3R laser product
Class 3B laser product – adjustable power levels
Ranging Wavelength
905 nm / NIR-I
1534 nm / SWIR – Undetectable by NV
1534 nm / SWIR – Undetectable by NV
Weight (inc. battery)
12.3 oz / 348g
12.9 oz / 367g
12.9 oz / 367g
Battery Life
(1 x rechargeable CR123)
10,000+ Range Events
10,000+ Range Events
10,000+ Range Events
The ground breaking laser rangefinder with precise ranging and integrated ballistic solver. The Maztech X4-LRF is a high-performance ranging laser with co-aligned visible and infrared aiming lasers. Combined with an integrated Applied Ballistics® solver and on-board environmental and motion sensors, it gives you a complete ranging and ballistics solution all in one compact, rugged package.
- Large format display; readable in full sunlight with polarised glasses
- Designed to meet MIL-STD-810 environmental specs
- Accurate ranging for commercial and military applications
- Manufactured from solid billet aircraft-grade 7075-T6 aluminium
- Designed and manufactured in the USA
Maztech X4-LRF Laser Range Finder
|
Rangefinding Laser: |
2K Variant – 905 nm
15K & 15M Variants – 1534 nm |
|
Co-Aligned Auxiliary Lasers: |
Visible Aim Laser (Red 660 nm)
IR Aim Laser (842 nm) |
|
Rail Mount: |
STANAG 4694 (Compatible with STANAG 2324 / Picatinny MIL-STD-1913)
|
|
Integrated Ballistics Solver:
|
Applied Ballistics® Solver with On-Board Motion and Environmental Sensors
|
|
Weight:
|
2K Variant – 12.3 oz (348 g) with battery
15K & 15M Variants – 12.9 oz (367 g) with battery |
|
Dimensions (L,W,H):
|
5.2 in. x 2.8 in x 1.8 in (133 mm x 72 mm x 47 mm)
|
|
Battery Type:
|
Supplied – CR123A (Rechargeable USB-C)
|
|
Wireless Connectivity:
|
Bluetooth® Low Energy and Ultra-Wideband (UWB).
Each can be disabled. |
|
Temperature Rating:
|
-40°F to 140°F (-40°C to 60°C) subject to appropriate temperature-rated batteries
|
|
External Colour:
|
Flat Dark Earth
|
X4-LRF-2K
A rugged multi-pulse laser rangefinder with integrated co-aligned pointers and a built-in weather station.
X4-LRF-15K
Engineered to provide ultimate range to target capability with instantaneous reliable returns in the same compact package. Ideal for competition shooters.
X4-LRF-15M
High-power aiming designed exclusively for Military and Law Enforcement partners.
X4-LRF-2K |
X4-LRF-15K |
X4-LRF-15M |
|
|
Maximum Range |
2,180 yds / 2,000m | 16,400 yds / 15,000m | 16,400 yds / 15,000m |
|
Aim Laser Power – VISIBLE |
4.9 mW visible | 4.9 mW visible | 70.0 mW visible |
|
Aim Laser Power – IR |
0.7 mW IR | 0.7 mW IR | 40.0 mW IR |
| Laser Class | Class 3R laser product | Class 3R laser product | Class 3B laser product – adjustable power levels |
| Ranging Wavelength | 905 nm / NIR-I | 1534 nm / SWIR – Undetectable by NV | 1534 nm / SWIR – Undetectable by NV |
|
Weight (inc. battery) |
12.3 oz / 348g | 12.9 oz / 367g | 12.9 oz / 367g |
|
Battery Life (1 x rechargeable CR123)
|
10,000+ Range Events | 10,000+ Range Events | 10,000+ Range Events |
