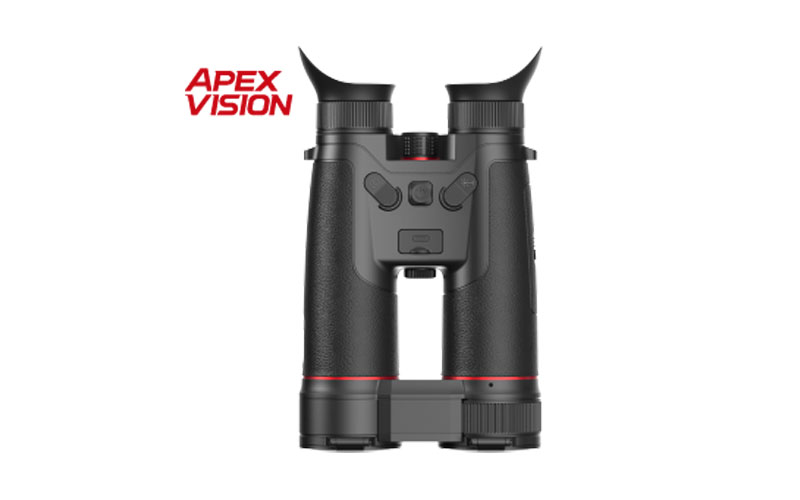

TN650MS Handheld Thermal Binoculars
TN650MS Handheld Thermal Binoculars
The all-new Handheld Binocular Series TN MUO from Guide revolutionises all-weather optical imaging solutions via innovation and precision. Whether for hunting, law enforcement, or professional application, the series combines modern thermal and visible light imaging technology, intelligent sensor fusion, and high-performance construction to give remarkable performance and dependability, making it the best option.
Guide TN MUO 2 Series Binoculars – TN650MS
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution
Thermal: 640×512@12μm (NETD 15mK); Digital: 3840×2160@2μm
Frame rate
50Hz
Lens
Objective lens
Thermal: 50mm, F1.0; Digital: 70mm, F1.8
Field of view
Thermal: 8.2°×4.9°; Digital: 5.9°×3.5°
FOV m@100m
Thermal: 14×9; Digital: 10×6
Magnification
Thermal: 3.9x~31.2x; Digital: 5.4x~43.2x
Detection range
Thermal: 2600m/2800yd; Digital: 1300m/1400yd
Focus
Manual
The all-new Handheld Binocular Series TN MUO from Guide revolutionises all-weather optical imaging solutions via innovation and precision. Whether for hunting, law enforcement, or professional application, the series combines modern thermal and visible light imaging technology, intelligent sensor fusion, and high-performance construction to give remarkable performance and dependability, making it the best option.
Guide TN MUO 2 Series Binoculars – TN650MS
| Sensor | ||||
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 640×512@12μm (NETD 15mK); Digital: 3840×2160@2μm | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | Thermal: 50mm, F1.0; Digital: 70mm, F1.8 | |||
| Field of view | Thermal: 8.2°×4.9°; Digital: 5.9°×3.5° | |||
| FOV m@100m | Thermal: 14×9; Digital: 10×6 | |||
| Magnification | Thermal: 3.9x~31.2x; Digital: 5.4x~43.2x | |||
| Detection range | Thermal: 2600m/2800yd; Digital: 1300m/1400yd | |||
| Focus | Manual | |||
