Guide TJ650 Thermal Monocular
Guide

TJ650 Handheld Thermal Imaging Monocular

Take a midnight adventure with the Guide TJ650, a popular choice among hunters. Clear night vision is made possible by this device’s high-sensitivity infrared detector and outstanding thermal imaging technology. These advantages are further enhanced by the Full-HD display, and its 12-hour battery life, two-hand operating, and video recording make it the ideal partner for adventures at night.

Guide TJ Series Monoculars – TJ650

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 3.79x~30.32x
Detection range 2600m/2800yd
Guide TJ630 Thermal Monocular Guide TJ Series Monoculars
Guide

TJ630 Handheld Thermal Imaging Monocular

The TJ630 is a popular choice for hunters who like to go on evening adventures. This gadget, which has outstanding thermal imaging technology, has a high-sensitivity infrared detector that makes night vision possible. Two-hand operation, video recording, and a 12-hour battery life make it the ideal partner for nocturnal adventures, and the Full-HD display amplifies these advantages.

Guide TJ Series Monoculars – TJ630

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×10.0°
FOV m@100m 22×17
Magnification 2.66x~21.28x
Detection range 1800m/1950yd
Guide TJ430 Thermal Monocular
Guide

TJ430 Handheld Thermal Imaging Monocular

Embark on evening adventures with the TJ430, a popular choice among hunters. This device is equipped with outstanding thermal imaging technology and a high-sensitivity infrared detector, allowing for great night vision. The Full-HD display amplifies these advantages, while two-handed use, video recording, and a 12-hour battery life make it ideal for evening adventures.

Guide TJ Series Monoculars – TJ430

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 25mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 7.9°×5.9°
FOV m@100m 14×10
Magnification 4.25x~17.0x
Detection range 1800m/1950yd

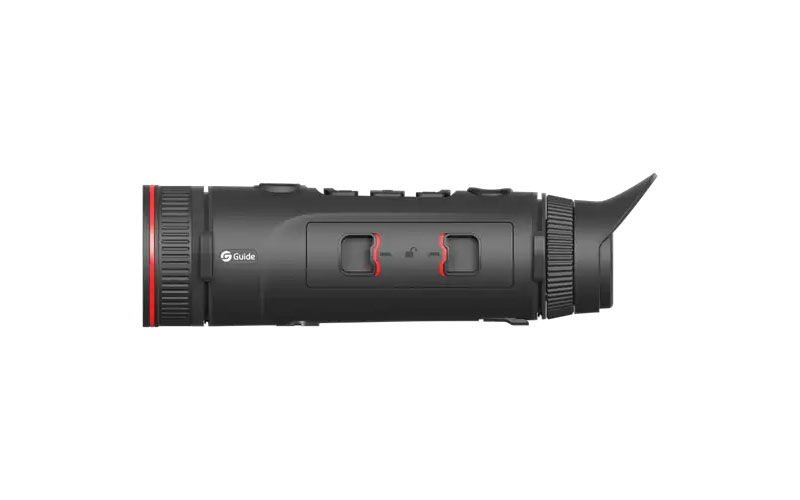

Guide TJ420 Thermal Monocular
Guide

TJ420 Handheld Thermal Imaging Monocular

The TJ420, a popular choice for hunters, makes nighttime exploration easy. Clear night vision is made possible by this device’s high-sensitivity infrared detector and outstanding thermal imaging technology. These advantages are further enhanced by the Full-HD display, and its 12-hour battery life, two-hand operating, and video recording make it the ideal partner for adventures at night.

Guide TJ Series Monoculars – TJ420

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 25mK
Frame rate 50Hz
Lens
Objective lens 25mm, F1.0
Field of view 11.0°×8.2°
FOV m@100m 19×14
Magnification 3.04x~12.16x
Detection range 1300m/1400yd
×
