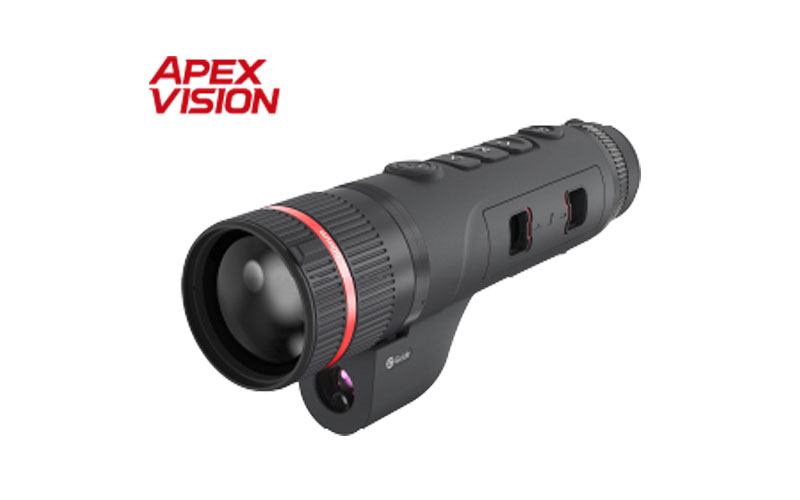

TJ660LZS Handheld Thermal Imaging Monocular
TJ660LZS Handheld Thermal Imaging Monocular
The Guide TJ660LZS Zoom incorporates an inbuilt 20mm/60mm DFOV lens, allowing you to adjust the focal length depending on whether you’re conducting a large-scale search or identifying a target from a long distance. The high-sensitivity 12μm infrared detector and full HD display provide great night vision. With two-handed operation, laser range, video recording, and a battery life of up to 10 hours, it’s the perfect companion for evening activities.
Guide TJ LRF Zoom Series Monoculars – TJ660LZS Zoom
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
15mK
Frame rate
50Hz
Lens
Objective lens
20mm, F0.9; 60mm, F1.1
Field of view
21.7×16.4; 7.3×5.5
FOV m@100m
38×29; 13×10
Magnification
1.2x~9.6x; 3.5x~28x
Detection range
1000m/1090yd; 3100m/3350yd
Focus
Manual
The Guide TJ660LZS Zoom incorporates an inbuilt 20mm/60mm DFOV lens, allowing you to adjust the focal length depending on whether you’re conducting a large-scale search or identifying a target from a long distance. The high-sensitivity 12μm infrared detector and full HD display provide great night vision. With two-handed operation, laser range, video recording, and a battery life of up to 10 hours, it’s the perfect companion for evening activities.
Guide TJ LRF Zoom Series Monoculars – TJ660LZS Zoom
| Sensor | ||||
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 20mm, F0.9; 60mm, F1.1 | |||
| Field of view | 21.7×16.4; 7.3×5.5 | |||
| FOV m@100m | 38×29; 13×10 | |||
| Magnification | 1.2x~9.6x; 3.5x~28x | |||
| Detection range | 1000m/1090yd; 3100m/3350yd | |||
| Focus | Manual | |||
