TJ650LS Handheld Thermal Imaging Monocular
Take a midnight adventure with the Guide TJ650LS, a popular choice among hunters. Clear night vision is made possible by this device’s high-sensitivity infrared detector and outstanding thermal imaging technology. These advantages are further enhanced by the Full-HD display, and its two-hand operation, laser range, video recording, and 12-hour battery life make it the ideal partner for adventures at night.
Guide TJ LRF Series Monoculars – TJ650LS
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
15mK
Frame rate
50Hz
Lens
Objective lens
50mm, F0.9
Field of view
8.8°×6.6°
FOV m@100m
15×12
Magnification
2.9x~23.2x
Detection range
2600m/2800yd
Focus
Manual
Take a midnight adventure with the Guide TJ650LS, a popular choice among hunters. Clear night vision is made possible by this device’s high-sensitivity infrared detector and outstanding thermal imaging technology. These advantages are further enhanced by the Full-HD display, and its two-hand operation, laser range, video recording, and 12-hour battery life make it the ideal partner for adventures at night.
Guide TJ LRF Series Monoculars – TJ650LS
| Sensor | ||||
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 50mm, F0.9 | |||
| Field of view | 8.8°×6.6° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.9x~23.2x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
TJ630L Handheld Thermal Imaging Monocular
With the TJ630L, a popular choice for hunters, go on evening adventures. This gadget has a high-sensitivity infrared detector that allows for good night vision and outstanding thermal imaging technologies. These advantages are further enhanced by the Full-HD display, and its two-hand operation, laser range, video recording, and 12-hour battery life make it the ideal partner for nocturnal adventures.
Guide TJ LRF Series Monoculars – TJ630L
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
20mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
12.5°×10.0°
FOV m@100m
22×17
Magnification
2.66x~21.28x
Detection range
1800m/1950yd
With the TJ630L, a popular choice for hunters, go on evening adventures. This gadget has a high-sensitivity infrared detector that allows for good night vision and outstanding thermal imaging technologies. These advantages are further enhanced by the Full-HD display, and its two-hand operation, laser range, video recording, and 12-hour battery life make it the ideal partner for nocturnal adventures.
Guide TJ LRF Series Monoculars – TJ630L
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10.0° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 2.66x~21.28x | |||
| Detection range | 1800m/1950yd | |||
TJ430L Handheld Thermal Imaging Monocular
Embark on nighttime explorations with the TJ430L, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades
Guide TJ LRF Series Monoculars – TJ430L
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
400×300@12μm
NETD
25mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
7.9°×5.9°
FOV m@100m
14×10
Magnification
4.25x~17.0x
Detection range
1800m/1950yd
Embark on nighttime explorations with the TJ430L, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades
Guide TJ LRF Series Monoculars – TJ430L
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 4.25x~17.0x | |||
| Detection range | 1800m/1950yd | |||

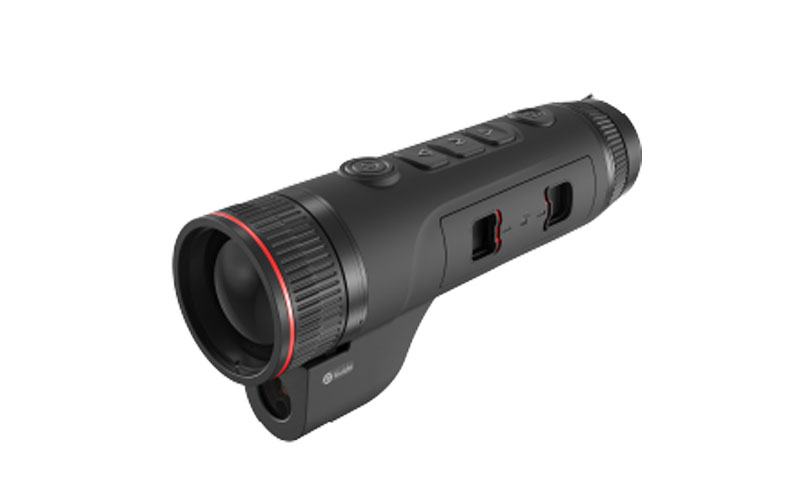

TJ420L Handheld Thermal Imaging Monocular
Venture into the night with confidence using the TJ420L, a favourite among hunters. Designed with cutting‑edge thermal imaging, it relies on an ultra‑sensitive infrared sensor to provide crisp, clear views in low‑light conditions. The Full‑HD display enhances image clarity, and practical features such as dual‑hand operation, laser rangefinding, video recording, and a durable 12‑hour battery make it an outstanding companion for after‑dark pursuits.
Guide TJ LRF Series Monoculars – TJ420L
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
400×300@12μm
NETD
25mK
Frame rate
50Hz
Lens
Objective lens
25mm, F1.0
Field of view
11.0°×8.2°
FOV m@100m
19×14
Magnification
3.04x~12.16x
Detection range
1300m/1400yd
Venture into the night with confidence using the TJ420L, a favourite among hunters. Designed with cutting‑edge thermal imaging, it relies on an ultra‑sensitive infrared sensor to provide crisp, clear views in low‑light conditions. The Full‑HD display enhances image clarity, and practical features such as dual‑hand operation, laser rangefinding, video recording, and a durable 12‑hour battery make it an outstanding companion for after‑dark pursuits.
Guide TJ LRF Series Monoculars – TJ420L
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 25mm, F1.0 | |||
| Field of view | 11.0°×8.2° | |||
| FOV m@100m | 19×14 | |||
| Magnification | 3.04x~12.16x | |||
| Detection range | 1300m/1400yd | |||
