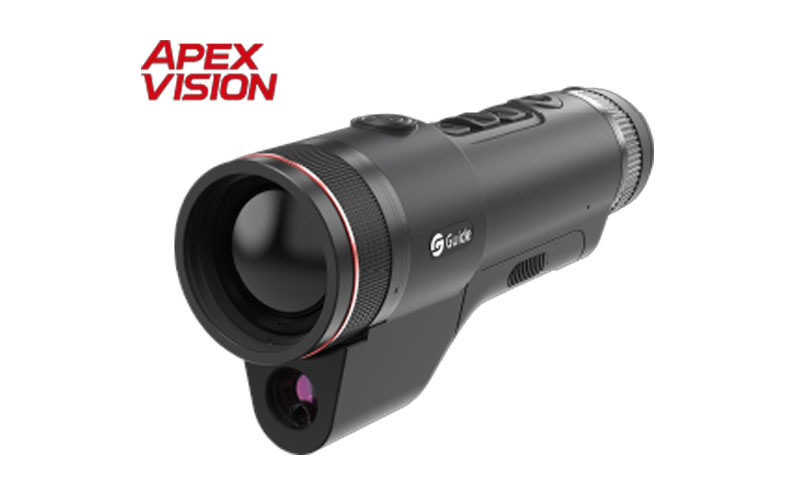

TJ1250LS Handheld Thermal Imaging Monocular
The Guide TJ1250LS has achieved unprecedented levels of image quality, comfort during observation, and intelligent functioning thanks to a complete hardware and software overhaul. With its 12μm high-sensitivity infrared detector, you can see your targets in the dark with clarity and realism. A magnificent visual experience akin to a home theatre is presented to you via a 0.5″ ultra-large AMOLED display. A built-in 1500m laser rangefinder that can be activated with a single button enhances the safety and ease of your journey.
Guide TJ LRF Pro Series Monoculars – TJ1250LS
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
1280×1024@12μm
NETD
15mK
Frame rate
50Hz
Lens
Objective lens
50mm, F0.9
Field of view
17.5°×13.1°
FOV m@100m
31×23
Magnification
2.36x~37.76x
Detection range
2600m/2800yd
Focus
Manual
The Guide TJ1250LS has achieved unprecedented levels of image quality, comfort during observation, and intelligent functioning thanks to a complete hardware and software overhaul. With its 12μm high-sensitivity infrared detector, you can see your targets in the dark with clarity and realism. A magnificent visual experience akin to a home theatre is presented to you via a 0.5″ ultra-large AMOLED display. A built-in 1500m laser rangefinder that can be activated with a single button enhances the safety and ease of your journey.
Guide TJ LRF Pro Series Monoculars – TJ1250LS
| Sensor | ||||
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 1280×1024@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 50mm, F0.9 | |||
| Field of view | 17.5°×13.1° | |||
| FOV m@100m | 31×23 | |||
| Magnification | 2.36x~37.76x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||

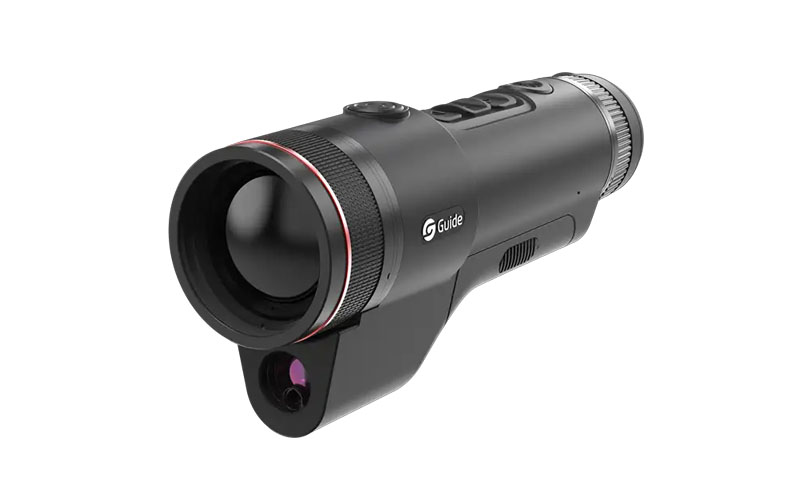

TJ650LP Handheld Thermal Imaging Monocular
The TJ650LP’s hardware configuration and software capabilities have been entirely improved, resulting in new heights in picture quality, observation comfort, and intelligent operation. The device features a 12μm high-sensitivity infrared detector, allowing for good visibility of targets in low-light conditions. The 0.5″ ultra-large AMOLED display provides a magnificent visual impact reminiscent of a home theatre. The built-in 1500m laser rangefinder, activated with a single button, makes your experience more secure and smooth.
Guide TJ LRF Pro Series Monoculars – TJ650LP
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
20mK
Frame rate
50Hz
Lens
Objective lens
50mm, F1.0
Field of view
8.8°×7.0°
FOV m@100m
15×12
Magnification
4.73x~37.84x
Detection range
2600m/2800yd
The TJ650LP’s hardware configuration and software capabilities have been entirely improved, resulting in new heights in picture quality, observation comfort, and intelligent operation. The device features a 12μm high-sensitivity infrared detector, allowing for good visibility of targets in low-light conditions. The 0.5″ ultra-large AMOLED display provides a magnificent visual impact reminiscent of a home theatre. The built-in 1500m laser rangefinder, activated with a single button, makes your experience more secure and smooth.
Guide TJ LRF Pro Series Monoculars – TJ650LP
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×7.0° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 4.73x~37.84x | |||
| Detection range | 2600m/2800yd | |||
TJ630LP Handheld Thermal Imaging Monocular
The TJ630LP fully upgraded its hardware configuration and software functions, bringing it to new heights in picture clarity, observation comfort, and intelligent operation. It is equipped with a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5″ ultra-large AMOLED display presents you with a stunning visual effect like a home theatre. Built-in 1500m laser rangefinder, triggered with one button, makes your adventure more secure and smooth
Guide TJ LRF Pro Series Monoculars – TJ630LP
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
20mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
12.5°×10.0°
FOV m@100m
22×17
Magnification
3.31x~26.48x
Detection range
1800m/1950yd
The TJ630LP fully upgraded its hardware configuration and software functions, bringing it to new heights in picture clarity, observation comfort, and intelligent operation. It is equipped with a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5″ ultra-large AMOLED display presents you with a stunning visual effect like a home theatre. Built-in 1500m laser rangefinder, triggered with one button, makes your adventure more secure and smooth
Guide TJ LRF Pro Series Monoculars – TJ630LP
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10.0° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 3.31x~26.48x | |||
| Detection range | 1800m/1950yd | |||
