TD653 Handheld Thermal Imaging Monocular
The Guide TD653 Gen3 Series handheld thermal imaging monocular is small in size yet has a lot of power. While the symmetrical ergonomic design allows for flexible handling with either hand, the focusing roller makes one-handed operation straightforward. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor obstacles. It improves the effectiveness and pleasure of your exploration with its Wi-Fi connection.
Guide TD Gen3 Series – TD653
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
20mK
Frame rate
50Hz
Lens
Objective lens
50mm, F1.0
Field of view
8.8°×6.6°
FOV m@100m
15×12
Magnification
2.6x~20.8x
Detection range
2600m/2800yd
Focus
Manual
The Guide TD653 Gen3 Series handheld thermal imaging monocular is small in size yet has a lot of power. While the symmetrical ergonomic design allows for flexible handling with either hand, the focusing roller makes one-handed operation straightforward. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor obstacles. It improves the effectiveness and pleasure of your exploration with its Wi-Fi connection.
Guide TD Gen3 Series – TD653
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×6.6° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.6x~20.8x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||

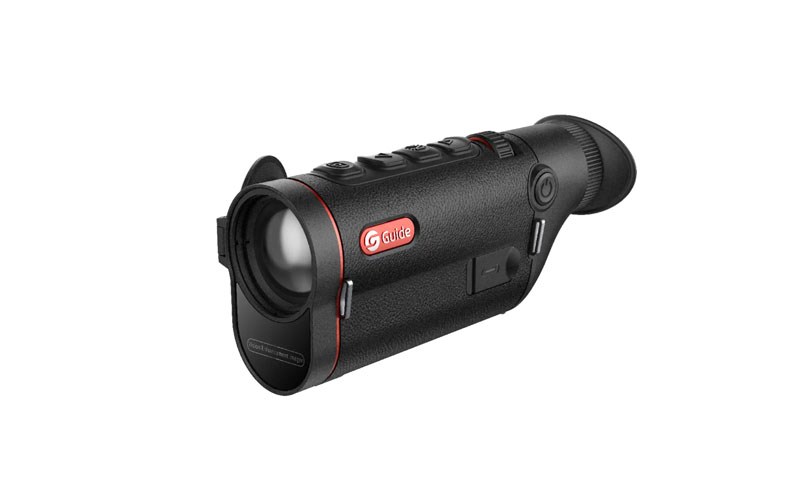

TD633 Handheld Thermal Imaging Monocular
The TD633 handheld thermal imaging monocular from the TD Gen3 Series is small in size yet very effective. The symmetrical ergonomic design permits flexible handling with either hand, and the focusing roller makes one-handed operation convenient. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor difficulties. It improves the effectiveness and fun of your exploration with its Wi-Fi connection.
Guide TD Gen3 Series – TD633
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
20mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
12.5°×9.4°
FOV m@100m
22×17
Magnification
1.8x~14.4x
Detection range
1800m/1950yd
Focus
Manual
The TD633 handheld thermal imaging monocular from the TD Gen3 Series is small in size yet very effective. The symmetrical ergonomic design permits flexible handling with either hand, and the focusing roller makes one-handed operation convenient. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor difficulties. It improves the effectiveness and fun of your exploration with its Wi-Fi connection.
Guide TD Gen3 Series – TD633
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×9.4° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 1.8x~14.4x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
TD433 Handheld Thermal Imaging Monocular
The TD433 Gen3 Series is a handheld thermal imaging monocular that is both powerful and small. The symmetrical ergonomic design permits flexible handling with either hand, and the focusing roller makes one-handed operation convenient. It is capable of handling a variety of outdoor conditions because to its amazing 12-hour battery life and IP67. With its Wi-Fi connection, it makes exploring more efficient and enjoyable.
Guide TD Gen3 Series – TD433
Sensor
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
400×300@12μm
NETD
25mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
7.9°×5.9°
FOV m@100m
14×10
Magnification
2.9x~11.6x
Detection range
1800m/1950yd
Focus
Manual
The TD433 Gen3 Series is a handheld thermal imaging monocular that is both powerful and small. The symmetrical ergonomic design permits flexible handling with either hand, and the focusing roller makes one-handed operation convenient. It is capable of handling a variety of outdoor conditions because to its amazing 12-hour battery life and IP67. With its Wi-Fi connection, it makes exploring more efficient and enjoyable.
Guide TD Gen3 Series – TD433
| Sensor | ||||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 2.9x~11.6x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
