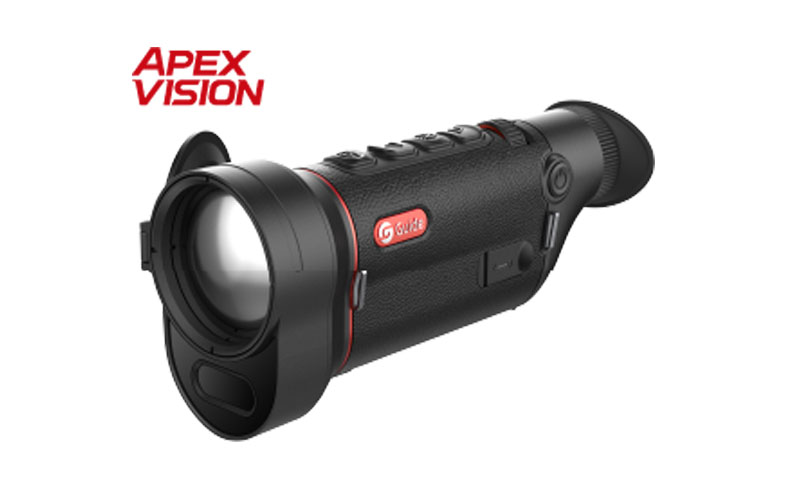

TD650LS Handheld Thermal Imaging Monocular
A laser rangefinder is creatively integrated into the compact form of the Guide TD650LS Gen3 LRF Series handheld thermal imaging monocular. While the symmetrical ergonomic design allows for flexible handling with either hand, the focusing roller makes one-handed operation straightforward. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor obstacles. It improves the effectiveness and pleasure of your exploration with its Wi-Fi connection.
Guide TD Gen3 LRF Series – TD650LS
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
15mK
Frame rate
50Hz
Lens
Objective lens
50mm, F1.0
Field of view
8.8°×6.6°
FOV m@100m
15×12
Magnification
2.91x~23.28x
Detection range
2600m/2800yd
Focus
Manual
A laser rangefinder is creatively integrated into the compact form of the Guide TD650LS Gen3 LRF Series handheld thermal imaging monocular. While the symmetrical ergonomic design allows for flexible handling with either hand, the focusing roller makes one-handed operation straightforward. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor obstacles. It improves the effectiveness and pleasure of your exploration with its Wi-Fi connection.
Guide TD Gen3 LRF Series – TD650LS
| Sensor | ||||
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×6.6° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.91x~23.28x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||

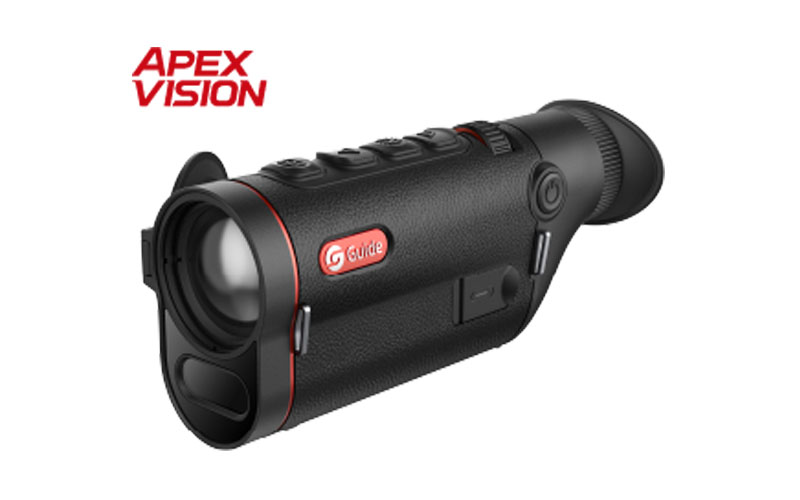

TD635LS Handheld Thermal Imaging Monocular
With its tiny design, the Guide TD635LS Gen3 LRF Series handheld thermal imaging monocular creatively incorporates a laser rangefinder. The symmetrical ergonomic design permits flexible handling with either hand, and the focusing roller makes one-handed operation convenient. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor difficulties. It improves the effectiveness and fun of your exploration with its Wi-Fi connection.
Guide TD Gen3 LRF Series – TD635LS
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
640×512@12μm
NETD
15mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
12.5°×9.4°
FOV m@100m
22×17
Magnification
2.03x~16.24x
Detection range
1800m/1950yd
Focus
Manual
With its tiny design, the Guide TD635LS Gen3 LRF Series handheld thermal imaging monocular creatively incorporates a laser rangefinder. The symmetrical ergonomic design permits flexible handling with either hand, and the focusing roller makes one-handed operation convenient. With an amazing 12-hour battery life and IP67, it can tackle a variety of outdoor difficulties. It improves the effectiveness and fun of your exploration with its Wi-Fi connection.
Guide TD Gen3 LRF Series – TD635LS
| Sensor | |
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 |
| Type | Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution | 640×512@12μm |
| NETD | 15mK |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | 35mm, F1.0 |
| Field of view | 12.5°×9.4° |
| FOV m@100m | 22×17 |
| Magnification | 2.03x~16.24x |
| Detection range | 1800m/1950yd |
| Focus | Manual |

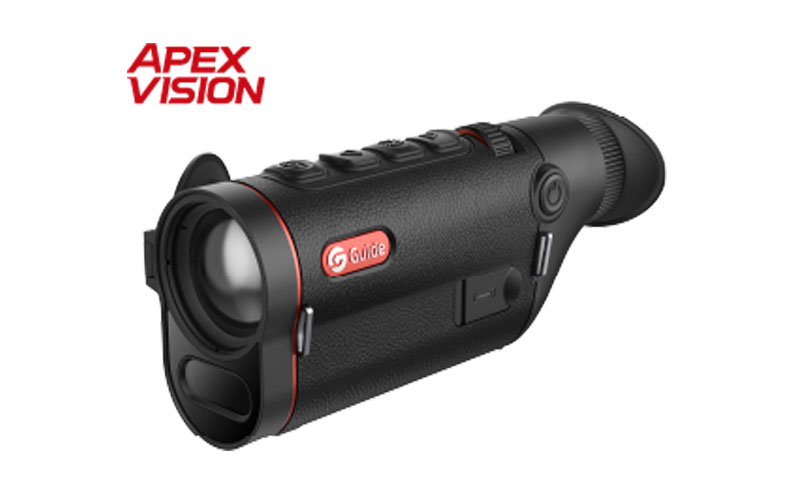

TD435LS Handheld Thermal Imaging Monocular
The TD435LS Gen3 LRF Series handheld thermal imaging monocular creatively incorporates a laser rangefinder into a small package. The symmetrical ergonomic design allows for flexible handling with either hand, and the focusing roller makes one-handed operation straightforward. With an amazing 12-hour battery life and IP67, it is ready to tackle a variety of outdoor adventures. Its Wi-Fi connection increases the effectiveness and pleasure of your investigation.
Guide TD Gen3 LRF Series – TD435LS
Sensor
Core Technology Item
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type
Uncooled VOx Infrared Detector, 8 to 14μm
Resolution
400×300@12μm
NETD
15mK
Frame rate
50Hz
Lens
Objective lens
35mm, F1.0
Field of view
7.9°×5.9°
FOV m@100m
14×10
Magnification
3.26x~13.04x
Detection range
1800m/1950yd
Focus
Manual
The TD435LS Gen3 LRF Series handheld thermal imaging monocular creatively incorporates a laser rangefinder into a small package. The symmetrical ergonomic design allows for flexible handling with either hand, and the focusing roller makes one-handed operation straightforward. With an amazing 12-hour battery life and IP67, it is ready to tackle a variety of outdoor adventures. Its Wi-Fi connection increases the effectiveness and pleasure of your investigation.
Guide TD Gen3 LRF Series – TD435LS
| Sensor | ||||
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 3.26x~13.04x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
