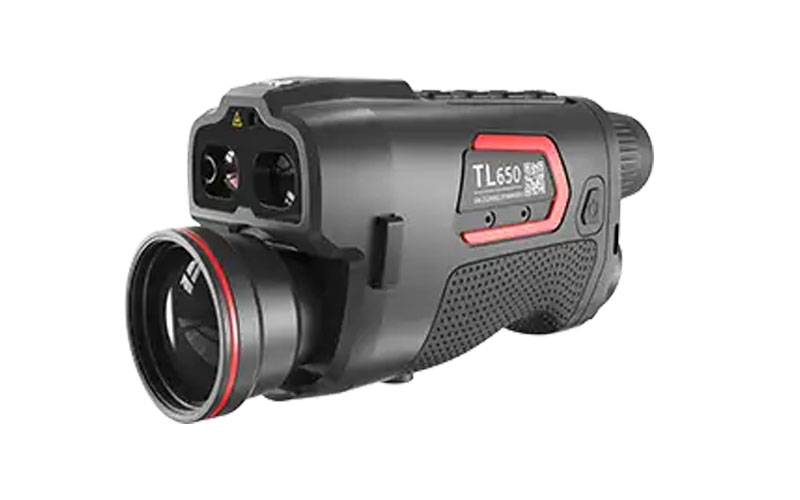

TL650 Multispectral Fusion Monocular
The TL Series is Guide‘s first multispectral fusion thermal monocular, with an all-in-one design that accommodates all-day and all-weather observation. The TL Series features a 12μm thermal sensor, 1920×1080 CMOS sensor, and 1920×1080 AMOLED display for clear and contrasted images. It also includes an integrated laser rangefinder with up to 600m accuracy. The built-in GPS, laser rangefinder, and gyroscope provide target latitude and longitude, target distance, and device angle information for easy aiming.
Guide Multispectral Monoculars – TL650
Sensor
Type
Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution
Thermal: 640×480@12μm Digital: 1920×1080@4μm
NETD
30mK
Frame rate
50Hz
Lens
Objective lens
Thermal: 50mm, F1.2; Digital: 17mm, F1.4
Field of view
8.7°×6.6°
FOV m@100m
15×12
Magnification
2.0x~16.0x
Detection range
2600m/2800yd
The TL Series is Guide‘s first multispectral fusion thermal monocular, with an all-in-one design that accommodates all-day and all-weather observation. The TL Series features a 12μm thermal sensor, 1920×1080 CMOS sensor, and 1920×1080 AMOLED display for clear and contrasted images. It also includes an integrated laser rangefinder with up to 600m accuracy. The built-in GPS, laser rangefinder, and gyroscope provide target latitude and longitude, target distance, and device angle information for easy aiming.
Guide Multispectral Monoculars – TL650
| Sensor | ||||
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 640×480@12μm Digital: 1920×1080@4μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | Thermal: 50mm, F1.2; Digital: 17mm, F1.4 | |||
| Field of view | 8.7°×6.6° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.0x~16.0x | |||
| Detection range | 2600m/2800yd | |||
TL630 Multispectral Fusion Monocular
Guide’s first multispectral fusion thermal monocular, the TL Series, has an all-in-one design that can be used for all-day and all-weather observation. The TL Series features an inbuilt laser rangefinder with up to 600m accurate ranging, a 12μm high-end thermal sensor, a 1920×1080 CMOS sensor, and a 1920×1080 AMOLED display that provide remarkably crisp and highly contrasted images. Target latitude and longitude, target distance, and device angle information may be retrieved for fast aiming thanks to the integrated GPS, laser rangefinder, and gyroscope.
Guide Multispectral Monoculars – TL630
Sensor
Type
Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution
Thermal: 640×480@12μm Digital: 1920×1080@4μm
NETD
30mK
Frame rate
50Hz
Lens
Objective lens
Thermal: 35mm, F1.0; Digital: 17mm, F1.4
Field of view
12.4°×9.3°
FOV m@100m
22×16
Magnification
1.5x~12x
Detection range
1800m/1950yd
Guide’s first multispectral fusion thermal monocular, the TL Series, has an all-in-one design that can be used for all-day and all-weather observation. The TL Series features an inbuilt laser rangefinder with up to 600m accurate ranging, a 12μm high-end thermal sensor, a 1920×1080 CMOS sensor, and a 1920×1080 AMOLED display that provide remarkably crisp and highly contrasted images. Target latitude and longitude, target distance, and device angle information may be retrieved for fast aiming thanks to the integrated GPS, laser rangefinder, and gyroscope.
Guide Multispectral Monoculars – TL630
| Sensor | ||||
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 640×480@12μm Digital: 1920×1080@4μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | Thermal: 35mm, F1.0; Digital: 17mm, F1.4 | |||
| Field of view | 12.4°×9.3° | |||
| FOV m@100m | 22×16 | |||
| Magnification | 1.5x~12x | |||
| Detection range | 1800m/1950yd | |||

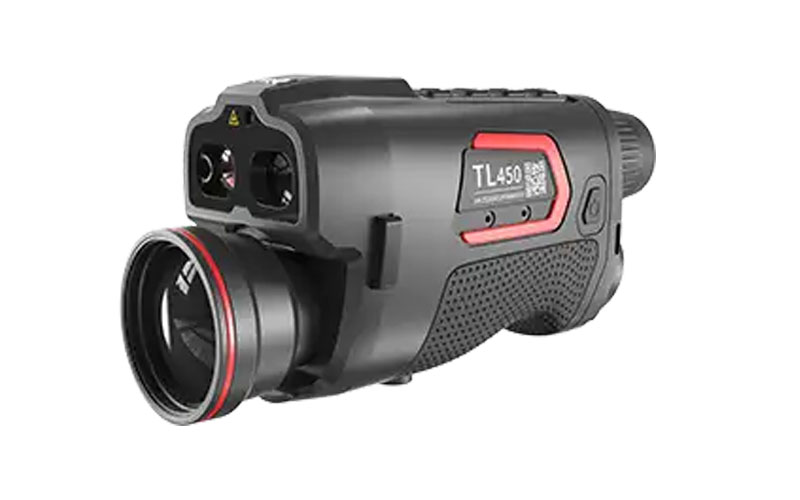

TL450 Multispectral Fusion Monocular
The TL Series is Guide’s first multispectral fusion thermal monocular, featuring an all‑in‑one design that supports reliable observation around the clock and in any weather. With its 12 μm premium thermal sensor, 1920×1080 CMOS sensor, and 1920×1080 AMOLED display, it delivers exceptionally sharp, high‑contrast visuals. The built‑in laser rangefinder provides precise measurements up to 600 meters. Thanks to integrated GPS, a laser rangefinder, and a gyroscope, users can quickly access target coordinates, distance, and device angle—making fast, accurate aiming easier than ever.
Guide Multispectral Monoculars – TL450
Sensor
Type
Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution
Thermal: 400×300@12μm; Digital: 1920×1080@4μm
NETD
30mK
Frame rate
50Hz
Lens
Objective lens
Thermal: 50mm, F1.2; Digital: 22mm, F1.5
Field of view
5.5°×4.1°
FOV m@100m
10×7
Magnification
3.3x~13.2x
Detection range
2600m/2800yd
The TL Series is Guide’s first multispectral fusion thermal monocular, featuring an all‑in‑one design that supports reliable observation around the clock and in any weather. With its 12 μm premium thermal sensor, 1920×1080 CMOS sensor, and 1920×1080 AMOLED display, it delivers exceptionally sharp, high‑contrast visuals. The built‑in laser rangefinder provides precise measurements up to 600 meters. Thanks to integrated GPS, a laser rangefinder, and a gyroscope, users can quickly access target coordinates, distance, and device angle—making fast, accurate aiming easier than ever.
Guide Multispectral Monoculars – TL450
| Sensor | ||||
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 400×300@12μm; Digital: 1920×1080@4μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | Thermal: 50mm, F1.2; Digital: 22mm, F1.5 | |||
| Field of view | 5.5°×4.1° | |||
| FOV m@100m | 10×7 | |||
| Magnification | 3.3x~13.2x | |||
| Detection range | 2600m/2800yd | |||

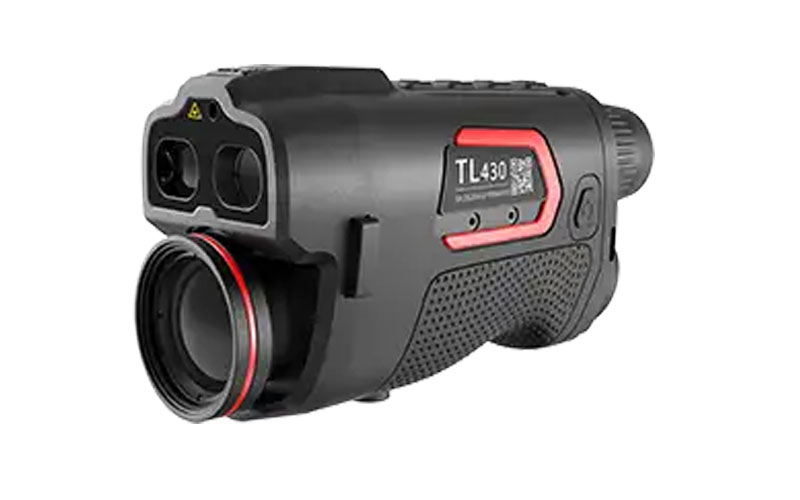

TL430 Multispectral Fusion Monocular
The TL Series is Guide’s first multispectral fusion thermal monocular, designed as an all‑in‑one solution for reliable, round‑the‑clock, all‑weather viewing. With its advanced 12 μm thermal sensor, 1920×1080 CMOS sensor, and 1920×1080 AMOLED display, it delivers exceptionally crisp, high‑contrast images. The built‑in laser rangefinder provides accurate distance measurements up to 600 meters. Combined with integrated GPS, the rangefinder, and a gyroscope, the device can quickly provide target coordinates, distance, and angle information to support fast and precise aiming.
Guide Multispectral Monoculars – TL430
Sensor
Type
Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution
Thermal: 400×300@12μm; Digital: 1920×1080@4μm
NETD
30mK
Frame rate
50Hz
Lens
Objective lens
Thermal: 35mm, F1.0; Digital: 22mm, F1.5
Field of view
7.8°×5.9°
FOV m@100m
14×10
Magnification
2.3x~9.2x
Detection range
1800m/1950yd
The TL Series is Guide’s first multispectral fusion thermal monocular, designed as an all‑in‑one solution for reliable, round‑the‑clock, all‑weather viewing. With its advanced 12 μm thermal sensor, 1920×1080 CMOS sensor, and 1920×1080 AMOLED display, it delivers exceptionally crisp, high‑contrast images. The built‑in laser rangefinder provides accurate distance measurements up to 600 meters. Combined with integrated GPS, the rangefinder, and a gyroscope, the device can quickly provide target coordinates, distance, and angle information to support fast and precise aiming.
Guide Multispectral Monoculars – TL430
| Sensor | ||||
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 400×300@12μm; Digital: 1920×1080@4μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
| Objective lens | Thermal: 35mm, F1.0; Digital: 22mm, F1.5 | |||
| Field of view | 7.8°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 2.3x~9.2x | |||
| Detection range | 1800m/1950yd | |||
