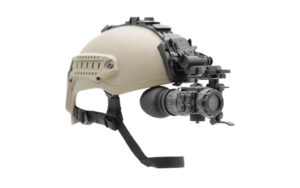

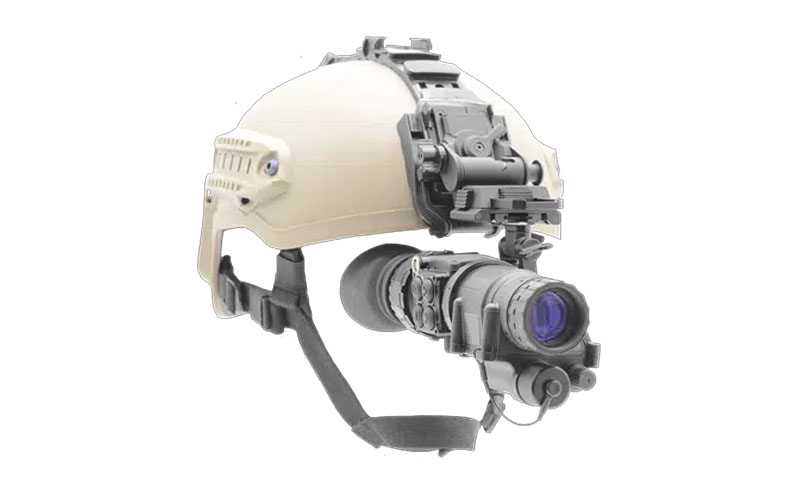

Multi-Task Augmented Reality Head-Up Display for Night Vision Monoculars - MTAR-HUD
The Multi-Task Augmented Reality™ night vision monocular attachment head-up display (MTAR™-HUD). Highly desired by professionals, the device is now entering the global market.
The real advantage behind the design is to transform a conventional night vision device into a full-scale tactical surveillance, even weapon mountable station. The GPS module allows the operator to identify and display their location, and the unit significantly enhances situational awareness referring to pitch-roll-yaw readings. Recordings can be re-produced and analysed from the built-in digital video recorder. All of the data is displayed on-screen of a night vision device in an informative, and non-distractive way.
Multi-Task Augmented Reality Head-Up Display – MTAR HUD
Video Streaming Options: Video-in/Video-out
Frame Rate: 50fps, no lags or delays
Multiphosphor: White phosphor/Green phosphor, IIT-independent
Colour modes: Auto, Full Colour, Grayscale, WP/GP
Compass: Yes, Magnetic and Gyro Compass
GPS: Yes, Degrees-Minutes-Seconds, Speed Reading
Stow Safety Feature: Yes
Stadiametric Rangefinder: Yes
Auto Power Off: Yes, Programmable
Internal Display: 0.6 inch diagonal, AMOLED, Colour 800×600
Brightness Control: Manual
Sensitivity: Automatic/Manual
Memory: 32GB MicroSD removeable card
Power Source: 1pc CR123, battery not included
External Power Port: 4VDC….15VDC
Battery Life: Up to 2.5hrs with CR123 battery
Dimensions: 70x50x58 mm
Mass: <135g
Operating Temp: -35˚C to +60˚C
Storage Temp: -40˚C to +70˚C
Mechanical & Optical Fitting: IP67, purging ready
Environmental: MIL-STD-810G
Available variations
MTAR™-HUD-Core
NVAR-14CU
Core Unit, ready for AN/PVS-14 installation; No eyepiece included
MTAR™-HUD-PU
NVAR-14PU
AN/PVS-14 eyepiece installed; Can be used as a “standalone”
MTAR™-HUD-PD
NVAR-14PD
Compact eyepiece installed; Can be used as a “standalone”
