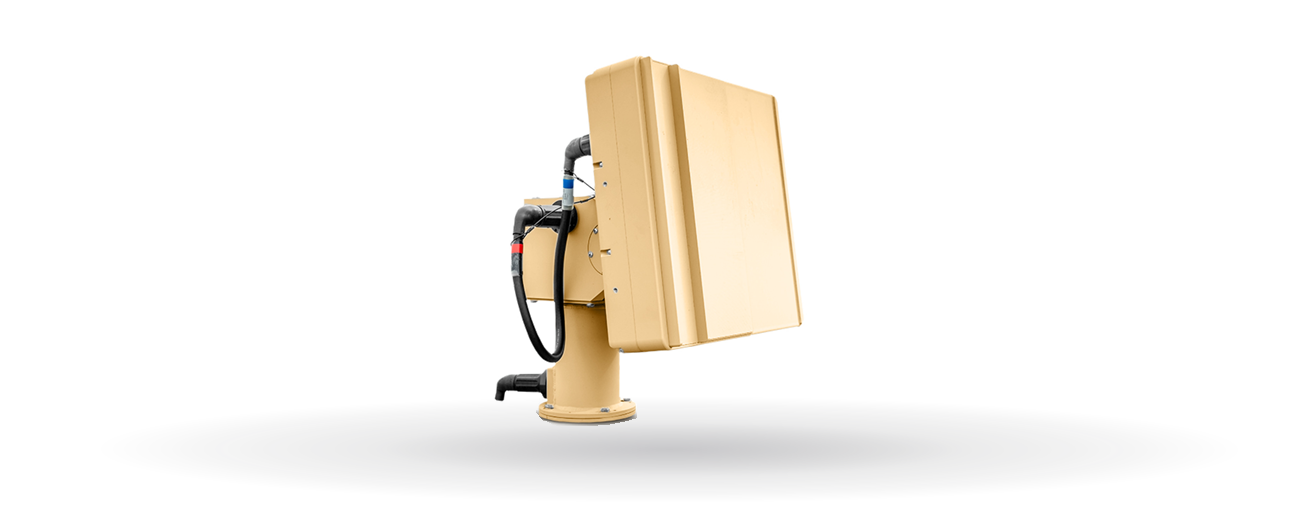

Ranger R8SS-3D Radar
FLIR Radars: The man-portable FLIR Ranger® R8SS-3D has the vertical coverage, low minimum detection velocity and algorithms to detect and track up to 500 drone targets simultaneously, while filtering bird detections.
FLIR Radars
Air and Ground Drone Surveillance Panel Radar
The man-portable FLIR Ranger® R8SS-3D has the vertical coverage, low minimum detection velocity and algorithms to detect and track up to 500 drone targets simultaneously, while filtering bird detections. The R8SS-3D can monitor the coverage area four times per second, running 24/7, detecting all ground and aerial threats in virtually any climate, day and night. Compact and lightweight, it fits in a backpack, draws only 135 W, while costing much less than its vehicle-sized counterparts.
R8SS-3D detects micro UAS targets up to 1.2 km out, pedestrians up to 3 km out, and light vehicles up to 6.5 km out. Multiple scan mode options include fixed sector, alternating sector, and continuous scan. An optional pan-tilt mount enables full 360° fast scanning. Depending on configuration, total backpack weight maxes out at 38.6 pounds. Fast 4-Hz refresh improves detection and tracking of micro drones. One cable, four mounting bolts, an XML command set make it easy to integrate.
FEATURES
FULL PERIMETER PROTECTION
Wide 45° beam elevation provides complete hemispherical detection of virtually every land and aerial target, including micro UAS. With the pan/tilt mount, the R8SS-3D covers 360°.
TARGET CLASSIFICATION
R8SS-3D mitigates bird false alarms and informs the operator if the target is a person, vehicle, UAS, bird, or unknown.
INTEGRATION WITH OTHER SENSORS
R8SS-3D reports target elevation and automatically points cameras and countermeasures to target.
FAST, ACCURATE THREAT DETECTION
R8SS-3D quickly detects one or up to 512 ground and airborne threats simultaneously while accurately displaying each target’s location and elevation – whether it’s alone or part of a drone swarm. MAN PORTABLE R8SS-3D can be transported in a backpack of a dismounted soldier and draws only 135W giving it extreme deployment flexibility.
APPLICATIONS
Force Protection, Border Security, Vehicle Dismount, Artillery and Mortar Fire Correction, UAS Detection
SPECIFICATIONS
Parameters R8SS-3D
Instrument Range: 7,800m)
Detection Range
Person: 3.0 km
Light Vehicle: 6.5 km
Large Vehicle: 7.8 km
MicroUAS: 1.2 km
MiniUAS: 2.1 km
Small UAS: 4.0 km
Minimum Detection Range: 10 m
Scan sector: ± 45° (fi xed) – 360° with P/T
Vertical coverage: ≥ 40°
Number of simultaneously displayed tracks: Up to 512
Electronic scan rate: 2 Hz or 4 Hz
Minimum Detection Velocity (MDV): < 0.1 m/s
Accuracy
Range Accuracy: ± 3 m
Angular Accuracy (azimuth): < 0.8 degree
Angular accuracy (elevation): < 3 degrees
Power
Power consumption: 135 W nominal
Operating voltage: 20 – 48 VDC
Overview
Size (in) :14.7” x 14.4” x 4.3” (37 x 36 x 11 cm)
Weight: ≤ 23.1 lbs (10.5 kg)
Operating Frequency: X-Band
Connectivity: ethernet
Environmental :MIL-STD-461F, IP67,MIL-STD-810G, FCC/CE
Other Features
Built-in GPS: Yes
Built-in Compass: Yes
FLIR Radars: The man-portable FLIR Ranger® R8SS-3D has the vertical coverage, low minimum detection velocity and algorithms to detect and track up to 500 drone targets simultaneously, while filtering bird detections.
FLIR Radars
Air and Ground Drone Surveillance Panel Radar
The man-portable FLIR Ranger® R8SS-3D has the vertical coverage, low minimum detection velocity and algorithms to detect and track up to 500 drone targets simultaneously, while filtering bird detections. The R8SS-3D can monitor the coverage area four times per second, running 24/7, detecting all ground and aerial threats in virtually any climate, day and night. Compact and lightweight, it fits in a backpack, draws only 135 W, while costing much less than its vehicle-sized counterparts.
R8SS-3D detects micro UAS targets up to 1.2 km out, pedestrians up to 3 km out, and light vehicles up to 6.5 km out. Multiple scan mode options include fixed sector, alternating sector, and continuous scan. An optional pan-tilt mount enables full 360° fast scanning. Depending on configuration, total backpack weight maxes out at 38.6 pounds. Fast 4-Hz refresh improves detection and tracking of micro drones. One cable, four mounting bolts, an XML command set make it easy to integrate.
FEATURES
FULL PERIMETER PROTECTION
Wide 45° beam elevation provides complete hemispherical detection of virtually every land and aerial target, including micro UAS. With the pan/tilt mount, the R8SS-3D covers 360°.
TARGET CLASSIFICATION
R8SS-3D mitigates bird false alarms and informs the operator if the target is a person, vehicle, UAS, bird, or unknown.
INTEGRATION WITH OTHER SENSORS
R8SS-3D reports target elevation and automatically points cameras and countermeasures to target.
FAST, ACCURATE THREAT DETECTION
R8SS-3D quickly detects one or up to 512 ground and airborne threats simultaneously while accurately displaying each target’s location and elevation – whether it’s alone or part of a drone swarm. MAN PORTABLE R8SS-3D can be transported in a backpack of a dismounted soldier and draws only 135W giving it extreme deployment flexibility.
APPLICATIONS
Force Protection, Border Security, Vehicle Dismount, Artillery and Mortar Fire Correction, UAS Detection
SPECIFICATIONS
Parameters R8SS-3D
Instrument Range: 7,800m)
Detection Range
Person: 3.0 km
Light Vehicle: 6.5 km
Large Vehicle: 7.8 km
MicroUAS: 1.2 km
MiniUAS: 2.1 km
Small UAS: 4.0 km
Minimum Detection Range: 10 m
Scan sector: ± 45° (fi xed) – 360° with P/T
Vertical coverage: ≥ 40°
Number of simultaneously displayed tracks: Up to 512
Electronic scan rate: 2 Hz or 4 Hz
Minimum Detection Velocity (MDV): < 0.1 m/s
Accuracy
Range Accuracy: ± 3 m
Angular Accuracy (azimuth): < 0.8 degree
Angular accuracy (elevation): < 3 degrees
Power
Power consumption: 135 W nominal
Operating voltage: 20 – 48 VDC
Overview
Size (in) :14.7” x 14.4” x 4.3” (37 x 36 x 11 cm)
Weight: ≤ 23.1 lbs (10.5 kg)
Operating Frequency: X-Band
Connectivity: ethernet
Environmental :MIL-STD-461F, IP67,MIL-STD-810G, FCC/CE
Other Features
Built-in GPS: Yes
Built-in Compass: Yes

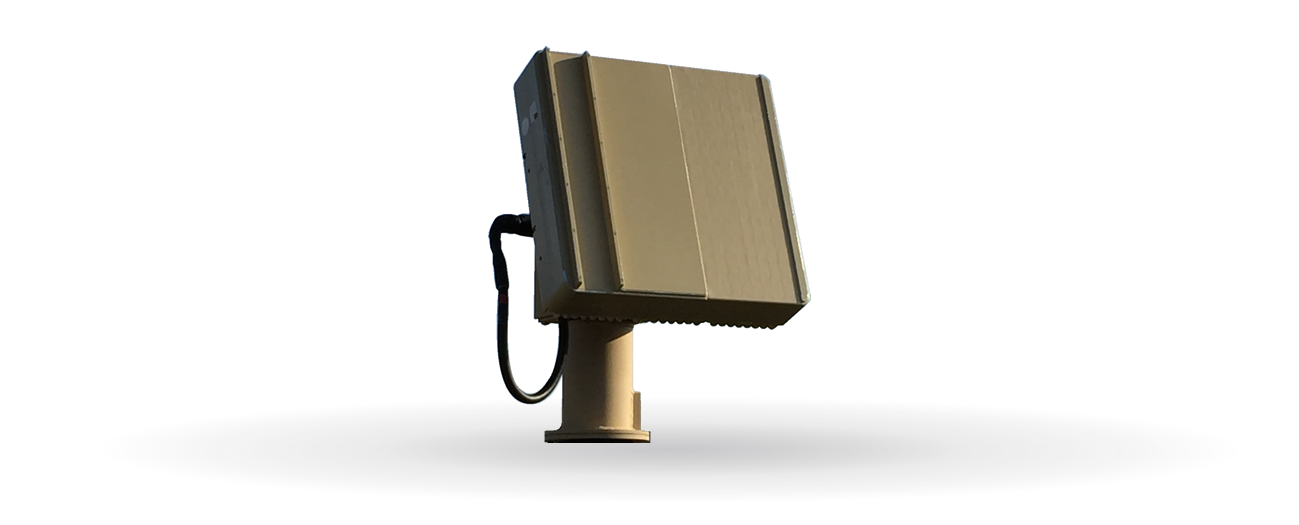

Ranger R6SS-U-U Radar
The man-portable FLIR Ranger® R6SS-U electronically-scanned, mid-range radars detect and track personnel and vehicles up to 10 kilometre ranges. Light and small, the Ranger R6SS-U provides best-in-class target detection and acquisition performance in a form factor that fits in a backpack or is easily mounted to a vehicle or permanent structure as part of an integrated solution.
Man-Portable Mid-Range Ground Surveillance Radar
The man-portable FLIR Ranger® R6SS-U electronically-scanned, mid-range radars detect and track personnel and vehicles up to 10 kilometre ranges. Light and small, the Ranger R6SS-U provides best-in-class target detection and acquisition performance in a form factor that fits in a backpack or is easily mounted to a vehicle or permanent structure as part of an integrated solution. The low false alarm rate and extremely reliable operation builds operator trust and yields high operational availability. The R6SS-U has a low minimum detection target velocity that allows detection of slow-moving threats such as walkers or crawlers. It uses a +/-45° scan sector to monitor a perimeter. Adding a pan and tilt provides a full 360° coverage every second. The R6SS-U provides fast and accurate detection of up to 512 threats simultaneously, allowing large areas to be continuously monitored in real time.
FEATURES
COMPLETE PERIMETER SECURITY
Extremely fast scanning at 4 times a second per panel, nothing is missed. The Ranger Panel Radars can scan a full 360° every second with a pan tilt mount, quickly detecting any ground threat from any direction.
HIGH-PERFORMANCE GROUND SURVEILLANCE
Built-in GPS and North finding capability, automatic target tracker and classification, and low false alarm rate deliver best-in-class performance.
BUILT FOR RUGGED ENVIRONMENTS
Panel Radars are MIL-STD-810G qualified and IP67 certified.
FAST, ACCURATE THREAT DETECTION
Panel Radars quickly detects up to 512 threats simultaneously while accurately displaying each target’s location.
MAN-PORTABLE AND EASY TO INTEGRATE
R6SS can be transported in a backpack of a dismounted soldier and draws only 85W, giving it extreme deployment flexibility. With four mounting bolts and a single cable, the radar is easy to install in fixed installations.
APPLICATIONS
Force Protection, Border Security, Vehicle Dismount, Artillery and Mortar Fire Correction, UAS Detection
SPECIFICATIONS
Parameters
Instrument Range: 15,000 m
Detection Range
Person: 2.5 km
Light Vehicle: 5.5 km
MicroUAS: 1.1 km
MiniUAS: 1.8 km
Minimum Detection Range: 10 m
Scan sector: ± 45° (fixed) – 360° with P/T
Vertical coverage: ≥ 40°
Number of simultaneously displayed tracks: Up to 512
Electronic scan rate: 2 Hz or 4 Hz
Minimum Detection Velocity (MDV): < 0.1 m/s
Accuracy
Range Accuracy: ± 3 m
Angular Accuracy (azimuth): < 0.2 degree
Power
Power consumption: 85 W nominal
Operating voltage: 20 – 48 VDC
Overview
Size (in): 14.7” x 14.4” x 4.3” (37 x 36 x 11 cm)
Weight: ≤ 23.1 lbs (10.5 kg)
Operating Frequency: X-Band
Connectivity: ethernet
Environmental :MIL-STD-461F, IP67,MIL-STD-810G, FCC/CE
Other Features
Built-in GPS: Yes
Built-in Compass: Yes
The man-portable FLIR Ranger® R6SS-U electronically-scanned, mid-range radars detect and track personnel and vehicles up to 10 kilometre ranges. Light and small, the Ranger R6SS-U provides best-in-class target detection and acquisition performance in a form factor that fits in a backpack or is easily mounted to a vehicle or permanent structure as part of an integrated solution.
Man-Portable Mid-Range Ground Surveillance Radar
The man-portable FLIR Ranger® R6SS-U electronically-scanned, mid-range radars detect and track personnel and vehicles up to 10 kilometre ranges. Light and small, the Ranger R6SS-U provides best-in-class target detection and acquisition performance in a form factor that fits in a backpack or is easily mounted to a vehicle or permanent structure as part of an integrated solution. The low false alarm rate and extremely reliable operation builds operator trust and yields high operational availability. The R6SS-U has a low minimum detection target velocity that allows detection of slow-moving threats such as walkers or crawlers. It uses a +/-45° scan sector to monitor a perimeter. Adding a pan and tilt provides a full 360° coverage every second. The R6SS-U provides fast and accurate detection of up to 512 threats simultaneously, allowing large areas to be continuously monitored in real time.
FEATURES
COMPLETE PERIMETER SECURITY
Extremely fast scanning at 4 times a second per panel, nothing is missed. The Ranger Panel Radars can scan a full 360° every second with a pan tilt mount, quickly detecting any ground threat from any direction.
HIGH-PERFORMANCE GROUND SURVEILLANCE
Built-in GPS and North finding capability, automatic target tracker and classification, and low false alarm rate deliver best-in-class performance.
BUILT FOR RUGGED ENVIRONMENTS
Panel Radars are MIL-STD-810G qualified and IP67 certified.
FAST, ACCURATE THREAT DETECTION
Panel Radars quickly detects up to 512 threats simultaneously while accurately displaying each target’s location.
MAN-PORTABLE AND EASY TO INTEGRATE
R6SS can be transported in a backpack of a dismounted soldier and draws only 85W, giving it extreme deployment flexibility. With four mounting bolts and a single cable, the radar is easy to install in fixed installations.
APPLICATIONS
Force Protection, Border Security, Vehicle Dismount, Artillery and Mortar Fire Correction, UAS Detection
SPECIFICATIONS
Parameters
Instrument Range: 15,000 m
Detection Range
Person: 2.5 km
Light Vehicle: 5.5 km
MicroUAS: 1.1 km
MiniUAS: 1.8 km
Minimum Detection Range: 10 m
Scan sector: ± 45° (fixed) – 360° with P/T
Vertical coverage: ≥ 40°
Number of simultaneously displayed tracks: Up to 512
Electronic scan rate: 2 Hz or 4 Hz
Minimum Detection Velocity (MDV): < 0.1 m/s
Accuracy
Range Accuracy: ± 3 m
Angular Accuracy (azimuth): < 0.2 degree
Power
Power consumption: 85 W nominal
Operating voltage: 20 – 48 VDC
Overview
Size (in): 14.7” x 14.4” x 4.3” (37 x 36 x 11 cm)
Weight: ≤ 23.1 lbs (10.5 kg)
Operating Frequency: X-Band
Connectivity: ethernet
Environmental :MIL-STD-461F, IP67,MIL-STD-810G, FCC/CE
Other Features
Built-in GPS: Yes
Built-in Compass: Yes
Ranger R3D Radar
The Ranger R3D is a dual mode, ground surveillance radar designed to provide efficient, 24/7 persistent surveillance, both within and beyond the fence. Operating in the Ka-band, the Ranger R3D leverages the resolution and accuracy of advanced FMCW technology and the extended range and terrain adaptability of Doppler in a single, compact, and lightweight package.
Dual Mode Perimeter Surveillance Radar
The FLIR Ranger R3D Radar is a dual mode, ground surveillance radar designed to provide efficient, 24/7 persistent surveillance, both within and beyond the fence. Operating in the Ka-band, the Ranger R3D leverages the resolution and accuracy of advanced FMCW technology and the extended range and terrain adaptability of Doppler in a single, compact, and lightweight package. Ruggedized for permanent, all-weather installations and mobile, stop-and-scan operations, its low minimum detection velocity (MDV) detects slowmoving threats such as walkers and crawlers.
A COTS unit for detecting and tracking surface movement, R3D provides wide area detection when used as a cueing device. Operators can be confident of up to 128 threats at a time due to low false alarm rates. Network with other FLIR radars to create an overlapping array that protects larger areas such as borders, ports, airports, and military bases. Target information output includes ID, location, range, bearing, latitude, longitude, confidence level, heading, speed, and time.
FEATURES
FMCW DOPPLER CAPABILITY
Ranger R3D Doppler provides extended range coverage in almost any terrain. Overcome blind target ranges/velocities by switching to Fast Scan/FMCW.
DUAL-MODE CAPABILITY
Switch between Fast Scan and Doppler depending on terrain and recognition requirements. Enhanced performance supports both radial and tangential detection.
INTEGRATED PROTECTION
Network multiple FLIR radars and EO/IR imagers with FLIR command and control to form a single powerful, integrated surveillance system.
FAST, ACCURATE THREAT DETECTION
R3D quickly detects up to 128 threats simultaneously while accurately displaying each target’s location.
RUGGEDIZED FOR RIGOROUS DUTY
Designed for permanent, all-weather installations and mobile, stop-and-scan operations, R3D can detect pedestrians, crawlers, and vehicles in virtually any environment.
APPLICATIONS
Force Protection, Border Security, Industrial Site Security, Critical Infrastructure Security, Monitor Ports, Airports and Military Bases
SPECIFICATIONS
R3D
Target Types :Moving, Less than 0.1m/s minimum for vehicles and personnel
Target Velocity: 0.1 to 50 m/s
Communications: Ethernet, wireless, fibre
XML: Yes (ICD-0100 compliant)
Target Information: Includes: ID; location: range & bearing; latitude & longitude; Confidence level; Heading; Speed; Time
Command & Control
Scan Rate: 3 to 60 rpm, continuous or sector
Elevation Coverage: 6°, 12° option
Elevation Control :Up: 2°; Down: 5° (fixed settings)
Input Power: 20 to 32 VDC, 24 nominal
Radiated Power: Safe for human exposure
False Alarm Rate: < 1 per 24 hours (Fast Scan)
Mask Zone(s) :One angular detection zone (Doppler), Two selectable angular detection zones (Fast Scan), One selectable angular detection zone (Doppler), Unlimited polygon detection zones
Environmental
Network: Up to 8 per server; total unlimited
Weight: 14 kg (29 lbs)
Dimensions: 373 mm (14.7 “) x 465 mm (18.3”) Dia
Power consumption: 40 Watts
Operating Range: 5 – 6,500 m,
Detection Range: 5 – 3,500 m, personnel walking, 5 – 6,500 m, vehicles and watercrafts
Coverage area: 133 km2 (53 mi2)
Temperature: -30° to +65°C (operating), -40° to +70°C (storage)
Humidity: 50% to 95%, non-condensing (60°C max)
Altitude: Up to 15 000 ft (operating and storage)
Wind: Up to 140 km/hr
Weather Sealing: IP 65 Rating
Protocol: ICD-0100
The Ranger R3D is a dual mode, ground surveillance radar designed to provide efficient, 24/7 persistent surveillance, both within and beyond the fence. Operating in the Ka-band, the Ranger R3D leverages the resolution and accuracy of advanced FMCW technology and the extended range and terrain adaptability of Doppler in a single, compact, and lightweight package.
Dual Mode Perimeter Surveillance Radar
The FLIR Ranger R3D Radar is a dual mode, ground surveillance radar designed to provide efficient, 24/7 persistent surveillance, both within and beyond the fence. Operating in the Ka-band, the Ranger R3D leverages the resolution and accuracy of advanced FMCW technology and the extended range and terrain adaptability of Doppler in a single, compact, and lightweight package. Ruggedized for permanent, all-weather installations and mobile, stop-and-scan operations, its low minimum detection velocity (MDV) detects slowmoving threats such as walkers and crawlers.
A COTS unit for detecting and tracking surface movement, R3D provides wide area detection when used as a cueing device. Operators can be confident of up to 128 threats at a time due to low false alarm rates. Network with other FLIR radars to create an overlapping array that protects larger areas such as borders, ports, airports, and military bases. Target information output includes ID, location, range, bearing, latitude, longitude, confidence level, heading, speed, and time.
FEATURES
FMCW DOPPLER CAPABILITY
Ranger R3D Doppler provides extended range coverage in almost any terrain. Overcome blind target ranges/velocities by switching to Fast Scan/FMCW.
DUAL-MODE CAPABILITY
Switch between Fast Scan and Doppler depending on terrain and recognition requirements. Enhanced performance supports both radial and tangential detection.
INTEGRATED PROTECTION
Network multiple FLIR radars and EO/IR imagers with FLIR command and control to form a single powerful, integrated surveillance system.
FAST, ACCURATE THREAT DETECTION
R3D quickly detects up to 128 threats simultaneously while accurately displaying each target’s location.
RUGGEDIZED FOR RIGOROUS DUTY
Designed for permanent, all-weather installations and mobile, stop-and-scan operations, R3D can detect pedestrians, crawlers, and vehicles in virtually any environment.
APPLICATIONS
Force Protection, Border Security, Industrial Site Security, Critical Infrastructure Security, Monitor Ports, Airports and Military Bases
SPECIFICATIONS
R3D
Target Types :Moving, Less than 0.1m/s minimum for vehicles and personnel
Target Velocity: 0.1 to 50 m/s
Communications: Ethernet, wireless, fibre
XML: Yes (ICD-0100 compliant)
Target Information: Includes: ID; location: range & bearing; latitude & longitude; Confidence level; Heading; Speed; Time
Command & Control
Scan Rate: 3 to 60 rpm, continuous or sector
Elevation Coverage: 6°, 12° option
Elevation Control :Up: 2°; Down: 5° (fixed settings)
Input Power: 20 to 32 VDC, 24 nominal
Radiated Power: Safe for human exposure
False Alarm Rate: < 1 per 24 hours (Fast Scan)
Mask Zone(s) :One angular detection zone (Doppler), Two selectable angular detection zones (Fast Scan), One selectable angular detection zone (Doppler), Unlimited polygon detection zones
Environmental
Network: Up to 8 per server; total unlimited
Weight: 14 kg (29 lbs)
Dimensions: 373 mm (14.7 “) x 465 mm (18.3”) Dia
Power consumption: 40 Watts
Operating Range: 5 – 6,500 m,
Detection Range: 5 – 3,500 m, personnel walking, 5 – 6,500 m, vehicles and watercrafts
Coverage area: 133 km2 (53 mi2)
Temperature: -30° to +65°C (operating), -40° to +70°C (storage)
Humidity: 50% to 95%, non-condensing (60°C max)
Altitude: Up to 15 000 ft (operating and storage)
Wind: Up to 140 km/hr
Weather Sealing: IP 65 Rating
Protocol: ICD-0100
