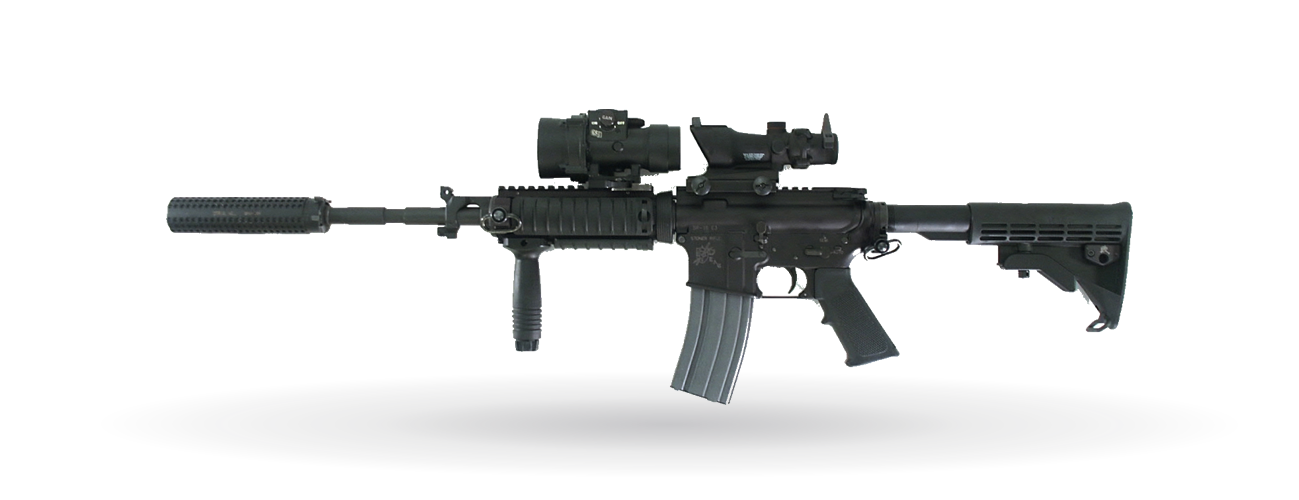

Tactical Night Sight (TaNS)
The MilSight Product Range is designed to mount on any MIL-STD-1913 rail interface, forward of an existing scope, adding night vision capabilities to daytime target acquisition platforms. The MilSight™ Product Range offers mission flexibility as a high-resolution night vision weapon sight with up to 10x magnification. The MilSight™ Product Range can be mounted with a spotting scope, hand-held as an observation device, or used in other operations requiring night vision capabilities. With FLIR’s proprietary Shock Mitigation System (SMS), theMilSight™ Product Range can be used on weapons up to and including .50 caliber bolt-action rifles. The MilSight™ Product Range is lightweight with large rugged controls, runs on a single AA or CR-23 battery, and has a Generation III Pinnacle tubes for ultimate low light performance.
SYSTEM
Image Intensifier: Gen 3 Autogated Pinnacle
Boresight Accuracy: Better than 1 MOA
Boresight Retention: Period Permanent
Boresight Adjustments: None Required
Boresight Repeatability: Within ½ MOA
Magnification: Unity
Optimum Dayscope Magnification: 1x – 8x
Field of View: 14o
Focus Range: 3 metres – infinity
Image Intensifier Gain: 1,000 – 7,500
PERFORMANCE
Resolution (Minimum): 2.5cy/mr
Resolution (Typical): 2.9 cy/mr
Facial ID Range, Low – Optimum Contrast – (6 cycles resolved across 0.2m) :
Starlight: 65 – 60m
¼ Moon: 90 – 105m
Man Det. Range, Low – Optimum Contrast – (1.5 cycles resolved across 0.8m) Starlight:
640 – 880m
¼ Moon: 880 – 1070m
OPTICAL
Objective Lens Focal Length: 50mm
Objective Lens f/number f/: 0.9
Output optic Exit Pupil Diameter: 33mm
OPERATIONAL
Controls :
On/Off/Gain
Rear-mounted focus
Batteries :AA
Weapon Interface (to MIL-STD 1913 rail): Single-lever locking
Operating Temperature Range: -30o to +60oC
Typical Platforms: Close-Combat assault rifles, including M4, M16, HK416, AK47
SUBMERSION
66 feet for 2 hours

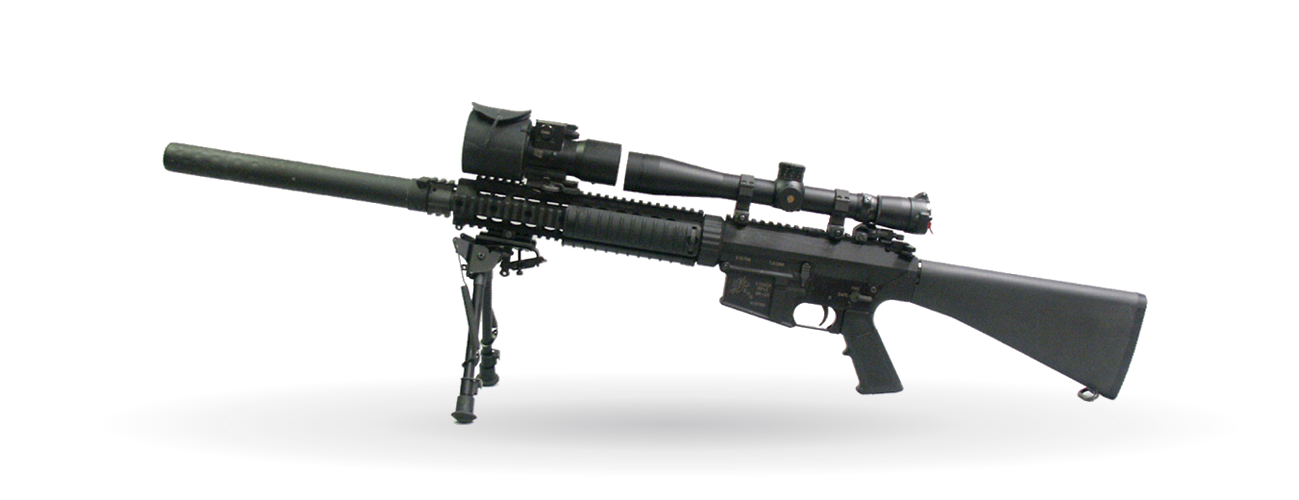

Universal Night Sight (UNS)
The MilSight Product Range is designed to mount on any MIL-STD-1913 rail interface, forward of an existing scope, adding night vision capabilities to daytime target acquisition platforms. The MilSight™ Product Range offers mission flexibility as a high-resolution night vision weapon sight with up to 10x magnification. The MilSight™ Product Range can be mounted with a spotting scope, hand-held as an observation device, or used in other operations requiring night vision capabilities. With FLIR’s proprietary Shock Mitigation System (SMS), theMilSight™ Product Range can be used on weapons up to and including .50 caliber bolt-action rifles. The MilSight™ Product Range is lightweight with large rugged controls, runs on a single AA or CR-23 battery, and has a Generation III Pinnacle tubes for ultimate low light performance.
SYSTEM
Image Intensifier: Gen 3 Autogated Pinnacle
Boresight Accuracy: Better than 1 MOA
Boresight Retention: Period Permanent
Boresight Adjustments: None Required
Boresight Repeatability: Within ½ MOA
Magnification: Unity
Optimum Dayscope Magnification: 1x – 12x
Field of View: 13o
Focus Range: 10 metres – infinity
Image Intensifier Gain: 1,000 – 7,500
PERFORMANCE
Resolution (Minimum): 3.2cy/mr
Resolution (Typical): 3.5 cy/mr
Facial ID Range, Low – Optimum Contrast – (6 cycles resolved across 0.2m) :
Starlight: 75 –110m
¼ Moon: 110 – 135m
Man Det. Range, Low – Optimum Contrast – (1.5 cycles resolved across 0.8m)
Starlight:
740 – 1050m
¼ Moon: 1060 – 1340m
OPTICAL
Objective Lens Focal Length: 68mm
Objective Lens f/number f/: 1.15
Output optic Exit Pupil Diameter: 40mm
PHYSICAL
Weight (without batteries): 32.2 oz.
Length: 7.1 inches
Maximum Height Above Rail : 2.95 inches
OPERATIONAL
Controls :
On/Off/Gain
Rear-mounted focus
Batteries : 2xAA
Weapon Interface (to MIL-STD 1913 rail): Single-lever locking
Operating Temperature Range: -30o to +60oC
Typical Platforms: All weapons from carbines to .50 calibre sniper rifles
SUBMERSION
66 feet for 2 hours

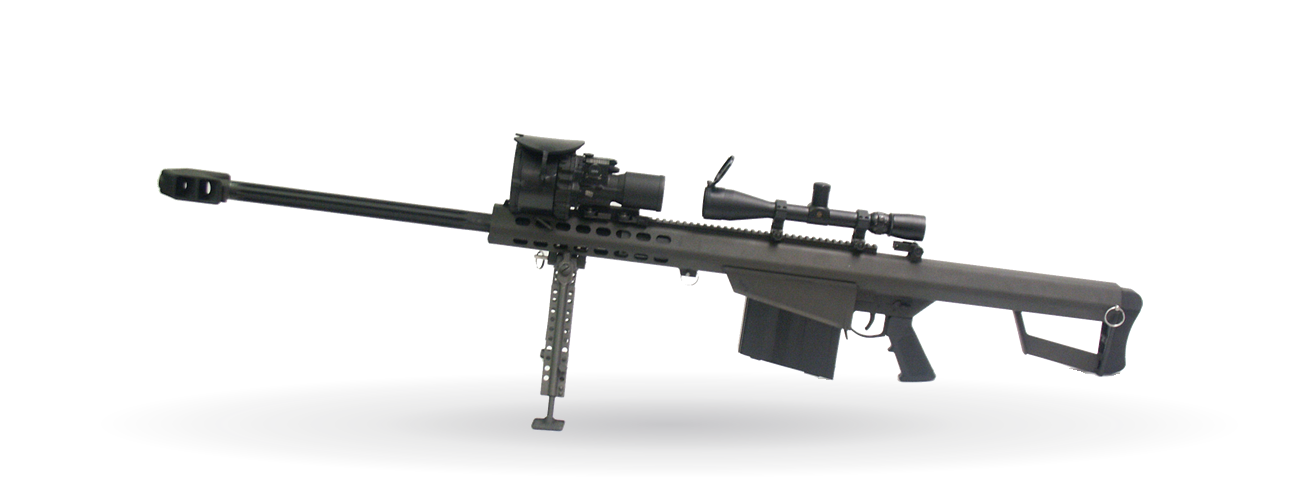

Magnum Universal Night Sight (MUNS)
The MilSight Product Range is designed to mount on any MIL-STD-1913 rail interface, forward of an existing scope, adding night vision capabilities to daytime target acquisition platforms. The MilSight™ Product Range offers mission flexibility as a high-resolution night vision weapon sight with up to 10x magnification. The MilSight™ Product Range can be mounted with a spotting scope, hand-held as an observation device, or used in other operations requiring night vision capabilities. With FLIR’s proprietary Shock Mitigation System (SMS), theMilSight™ Product Range can be used on weapons up to and including .50 caliber bolt-action rifles. The MilSight™ Product Range is lightweight with large rugged controls, runs on a single AA or CR-23 battery, and has a Generation III Pinnacle tubes for ultimate low light performance.
SYSTEM
Image Intensifier: Gen 3 Autogated Pinnacle
Boresight Accuracy: Better than 1 MOA
Boresight Retention: Period Permanent
Boresight Adjustments: None Required
Boresight Repeatability: Within ½ MOA
Magnification: Unity
Optimum Dayscope Magnification: 3x – 20x
Field of View: 10o
Focus Range: 15 metres – infinity
Image Intensifier Gain: 1,000 – 7,500
PERFORMANCE
Resolution (Minimum): 4.2cy/mr
Resolution (Typical): 5.0 cy/mr
Facial ID Range, Low – Optimum Contrast – (6 cycles resolved across 0.2m) :
Starlight: 100 – 140m
¼ Moon: 140 – 180m
Man Det. Range, Low – Optimum Contrast – (1.5 cycles resolved across 0.8m)
Starlight: 970 – 1350m
¼ Moon: 1380 – 1730
OPTICAL
Objective Lens Focal Length: 92mm
Objective Lens f/number f/: 1.0
Output optic Exit Pupil Diameter: 40mm
PHYSICAL
Weight (without batteries): 50.6 oz.
Length: 7.7 inches
Maximum Height Above Rail: 3.75 inches
OPERATIONAL
Controls :
On/Off/Gain
Rear-mounted focus
Batteries: 2xAA
Weapon Interface (to MIL-STD 1913 rail): Dual-lever locking
Operating Temperature Range: -30o to +60oC
Typical Platforms: Medium/long range sniper weapons (e.g. XM107, 300 WinMag)
SUBMERSION
66 feet for 2 hours
