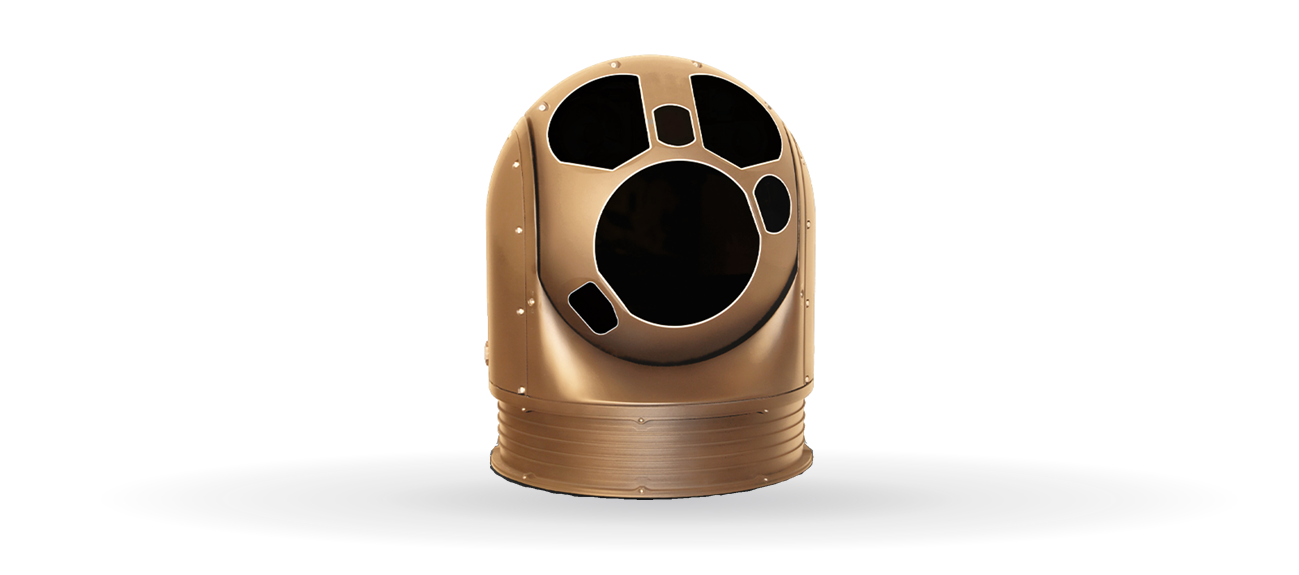

TacFLIR 380 HD
The TacFLIR® 380-HD is a state-of-the-art ISTAR sensor designed for land vehicle applications. Identical to airborne and maritime versions of the Star SAFIRE 380-HD, TacFLIR 380-HD goes further with other sealings and shock mounts for land vehicle environments.
LONG-RANGE HD MULTI-SPECTRAL SURVEILLANCE SYSTEM
The FLIR TacFLIR® 380-HD is a state-of-the-art ISTAR sensor designed for land vehicle applications. Identical to airborne and maritime versions of the Star SAFIRE 380-HD, TacFLIR 380-HD goes further with other sealings and shock mounts for land vehicle environments. Payloads include a MWIR camera with a native 1280 x 720 resolution, HD CCD cameras, HD SWIR camera, laser rangefinder, and laser pointer. 6-axis stabilization gives the TacFLIR 380-HD unmatched geolock and target tracking capabilities.
Built to MIL-STD-461F and MIL-STD-810E standards, TacFLIR 380-HD is designed for deployment in border surveillance, force protection, IED detection, RECCE vehicle, and target acquisition. Optional SWIR payload delivers clear visibility through fog. Multiple laser payloads covertly light up wide areas, point out distant targets to other forces, and determine target distance and location. Digital video channels with symbology overlays comply with all government HD standards, and 120x zoom ratio extends detection range to the horizon without sacrificing wide FOV situational awareness.
FEATURES
SINGLE LRU SYSTEM
The only all-digital, HD system in a single LRU for ease of installation and integration— no junction boxes required.
FULL DIGITAL IMAGE BLENDING
The system combines important HD IR, colour, or SWIR spectral information for enhanced results—essential in single video channel downlinks.
UP TO 7 SIMULTANEOUS PAYLOADS
1280 x 720 MWIR resolution, HD CCD camera, HD SWIR, laser rangefinder and laser pointer plus more options.
6-AXIS STABILITY
Patented electro-mechanical design keeps payloads stable for clear viewing regardless of bumpy terrain and vehicle manoeuvring.
120X ZOOM AND 360° VISIBILITY
Maintain constant watch over your area and use high-magnification optics to extend detection range without sacrificing wide FOV situational awareness.
APPLICATIONS
Reconnaissance Vehicle
Border Surveillance
Route Clearing – IED Detection
Target Acquisition
Force Protection
SPECIFICATIONS
Thermal Imager
Sensor type: 640 x 512 InSb MWIR FPA, HD IR option: 1280 x 720 HD MWIR
Wavelength: 3-5 μm response
FOVs: 30° to 0.25°
Zoom Ratio: 120x
Colour High Definition Camera
Sensor type: Colour CCD Progressive Scan
Resolution: 720/1080 HD and NTSC/PAL
FOVs: 29° to 0.25°
Zoom ratio: 120x
Colour Low Light High Definition Camera (Optional)
Sensor type: Colour NIR CCD Progressive Scan
Resolution: 720/1080 HD and NTSC/PAL
FOVs: 55° to 1.5°
SWIR Short Wave IR Camera (Optional)
Sensor type: InGaAs; extended NIR sensitivity optional
Resolution: 720/1080 HD and NTSC/PAL
FOVs: 28° to 0.25°
Laser Payloads
Rangefinder: Max Range: 20 km
Classification: Class 1 Eyesafe
Pointer (Option): 100 mW, Class 3b
System Performance
System type: 4 axis stabilization
Az. coverage: 360° Continuous
El. Coverage: +30° to -120°
System Interfaces
Digital Video: SMPTE 292M/424M
Analogue Video: NTSC/PAL
Data & Control :RS-232, RS-422, ARINC 419/429, MIL-STD-1553B, Ethernet
Metadata: MISP compliant STD9716 & STD0902.1, STANAG 4609, SMPTE 291M/RP214
Environmental
Standards: MIL‐STD‐810E, MIL‐STD‐461F
Operating temperature: -40°C to 55°C
Power Requirements
Voltage: 22-29 VDC (per MIL-STD-704E)
Consumption: 280 W Typical, 350 W Max
Dimensions, Weight & Mounting
Single LRU: 15.0” x 18.5” (380 mm x 475 mm)
TFU weight: <99 lbs (<45 kg)
Mounting: Compatible with existing SAFIRE installations
Other Options & Accessories
Navigation/Radar Interfaces, Quick-Disconnect Mounts, High Resolution Displays and Recorders, Moving Map Systems,
Reg. US Patent 7,474,451 and 7,264,220, other patents pending

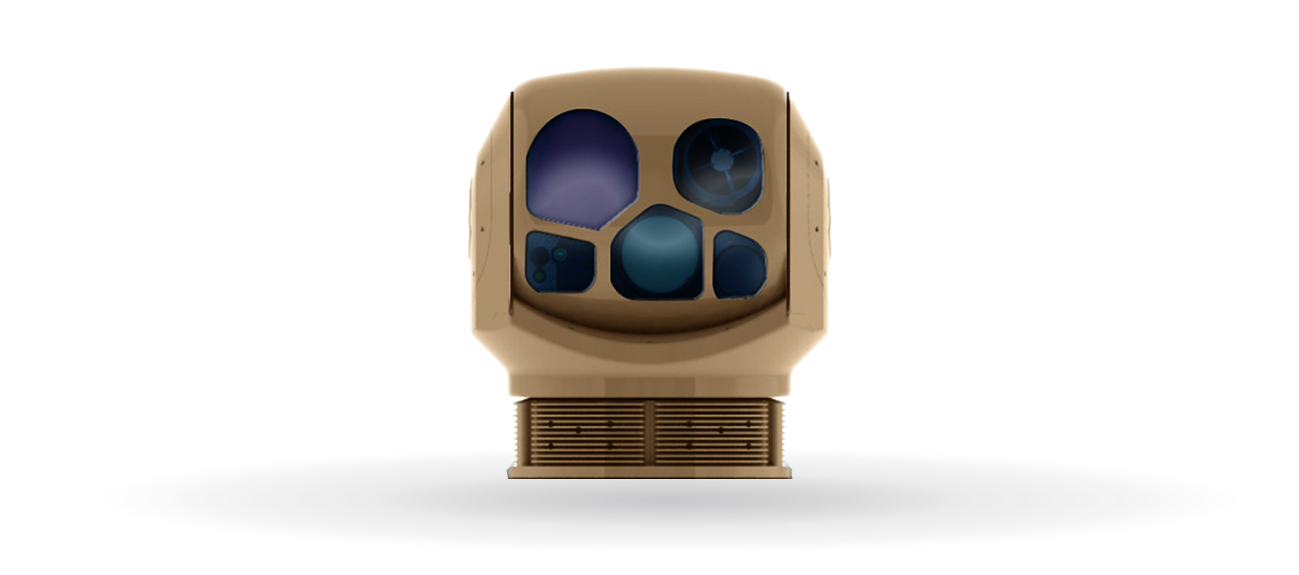

TacFLIR 280 HD
TacFLIR® 280-HD is a high-performance land-based imaging system designed to identify and track smugglers, terrorists, or any other threat – day and night, and in the toughest terrain.
Compact Long Range HD Multi-Spectral Surveillance System
The FLIR TacFLIR® 280HD Gimbal is a high-performance land-based imaging system designed to identify and track smugglers, terrorists, or any other threat – day and night, and in the toughest terrain. Tailored for mobile deployment with high-definition imaging and powerful optics, TacFLIR 280-HD reveals the details necessary for long-range vehicle detection, identification, and threat assessment. The long range performance allows operators longer standoff to detect and identify targets.
Optimized for vehicle operations, gyro-stabilized TacFLIR 280-HD provides crisp, stable imagery through total darkness and smoke while on the move. Qualified and rugged, it’s built to MIL-STD-461 and MIL-STD-810. Customize payload with multiple options, including CCD or SWIR spotter scope, laser illuminator, and laser pointer. Internal navigation system and laser rangefinder provide accurate target location coordinates to pinpoint areas of interest and support precision tracking solutions for all sensors.
FEATURES
HD EXTENDED RANGE THERMAL IMAGING
720 InSb IR focal plane array detects and identifies targets at longer standoff and with higher resolution. 640 also available.
CONTINUOUS ZOOM DAY/LOW-LIGHT CAMERA
HD sensors with 20x continuous zoom and 120x total magnification produce vivid colours and superior night visibility.
EYESAFE LASER RANGEFINDER
Accurately determine range to target and geo-location for fire control calculations. Optional NIR and SWIR laser pointer and illuminator available.
INTERNAL NAVIGATION SYSTEM
Embedded INS determines and disseminates accurate target location coordinates.
TAILORED FOR MOBILE APPLICATIONS
Rugged and gyro-stabilized to provide crisp imagery even while on the move, TacFLIR 280-HD detects and assesses threats a full 360° area
APPLICATIONS
Reconnaissance
Surveillance
Military Police Security
Forward Observation
Force Protection
SPECIFICATIONS
Thermal Imager
Sensor type: 1280×720 InSb FPA (640 x 480 optional)
Wavelength: 3-5 μm
FOVs: Optical 40°‐2° continuous, 4X E‐Zoom: 0.5°
Daylight Camera
Sensor type: 1920×1080 CCD
FOVs: Optical: 54.4° to 1.5°, 3X E-Zoom: 0.5°
Low Light Camera
Sensor type: 1280×720 sCMOS
FOVs Optical: 52.1° to 1.4°, 3X E-Zoom: 0.5°
Laser Range Finder
Type: Class 1 eye-safe
Range: 10 km (15 km on larger targets)
Typical Range Accuracy: +/- 5 m
Spotter Scope (Option)
Sensor type: 1920×1080 CCD or 640×480 SWIR
FOVs: CCD: 29.9°, 4.83°, 0.92°, 0.51° (0.25° w/2X E-Zoom)
SWIR: 32.8°, 5.32°, 1.01°, 0.56° (0.28° w/2X E-Zoom)
Laser Payloads
Rangefinder: Max Range: 30 km, Classification: Class 1 or Class 1M (10 Hz)
Illuminator (Option): Power: 1 W or 2 W – NIR or SWIR, Classification: Class 4
Pointer (Option): Power: 150 mW, Classification: Class 3b
System Performance
System type: Gyro stabilized TFU w/ separate CEU
Az. coverage: 360°
System Interfaces
Digital Video: SMPTE 292M/HDMI
Analogue Video: NTSC/PAL
Control: RS‐232, RS‐422
Data: RS‐232, RS‐422
Environmental
Standards: MIL‐STD‐810, MIL‐STD‐461
Operating temperature: -40°C to 55°C
Power Requirements
Voltage: 24VDC
Consumption 2: 240 W Typical, 350 W Max
Anti‐Ice: Additional 360 W
Dimensions & Weight
TFU size :356mm (d) x 406mm (h) cylindrical volume
TFU weight: <25kg
CEU size: 305mm w x 305mm d x 140mm h
CEU weight: <8.6kg
Other Options & Accessories
Displays & Recorders, 3rd Party Video Processing

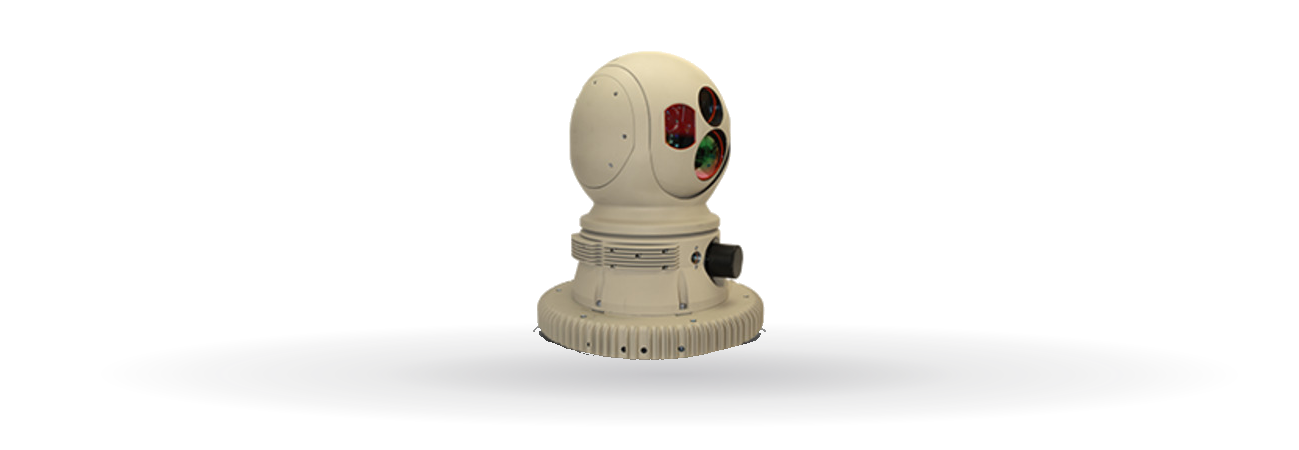

TacFLIR 230
The TacFLIR® 230 provides maximum sensor range performance including a high-resolution colour zoom TV camera with low light capability, a powerful 640x480 cooled MWIR thermal camera with 18x magnification, and optional laser pointer and rangefinder.
Compact Long Range HD Multi-Spectral Surveillance System
The TacFLIR® 230 Gimbal provides maximum sensor range performance including a high-resolution colour zoom TV camera with low light capability, a powerful 640×480 cooled MWIR thermal camera with 18x magnification, and optional laser pointer and rangefinder. At 18.6kg(41lbs) and 229mm (9in) diameter, the TacFLIR230 provides the ability to deploy on any platform including UGVs.
Optimized for vehicle operations, TacFLIR 230 is tailored through extensive operational experience for RECCE, force protection, ISR, commander’s viewer, driver’s vision, and situational awareness. It’s easily deployed with extendable masts and gyro-stabilized for on the-move operations. TacFLIR 230’s multi-sensor payload provides crisp, stable imagery through total darkness and smoke while on the move. Qualified and rugged, it’s built to MIL-STD-461, MIL-STD-810, and MIL-STD-704E
FEATURES
OPTIMIZED FOR MOBILITY
Easily deployed with extendable masts and tailored through extensive vehicle experience for RECCE, force protection, drivers’ vision and situational awareness.
STABILIZED FOR ON-THE-MOVE OPERATION
Gyro-stabilized for mid-range ISR and tuned for vehicle installation. The TacFLIR 230 provides maximum sensor range performance over typical pan/tilt systems.
MULTI-SENSOR SYSTEM
High-resolution colour camera; powerful 640 x 480 cooled MWIR thermal camera with 18x total zoom; optional laser rangefinder and/or pointer
FULLY INTEGRATED TO VEHICLE
TacFLIR 230 communicates with vehicle systems, GPS, INS, radar, and Moving Map.
ERGONOMIC HAND CONTROLLER
Ruggedized control unit is backlit, NVIS compatible, and fully sealed.
APPLICATIONS
Reconnaissance, Surveillance, Military Police Security, Forward Observation, Force Protection
SPECIFICATIONS
Thermal Imager
Sensor type: Indium Antimonide Focal Plane Array (MWIR)
Zoom Ratio: 10x continuous zoom
Image Resolution: 640 x 480
Optional Zoom Extender: 1.8 x
Daylight/Colour CCD TV
Performance: Long range optics with maximized focal lengths
Zoom: 30x continuous
Low light: 0.7 lux
Auto-tracker
Performance: Multimode video auto-tracker
Laser Range Finder
Type: Class 1 eye-safe
Range: 10 km (15 km on larger targets)
Typical Range Accuracy: +/- 5 m
Laser Pointer
Nominal Wavelength: 852 nm
Power: 30 mW nominal
Classification: Class 3B (per ANSI Z136.1-2007)
Mechanical/Electrical
System Weight: ~41 lbs (~18.5 kg)
Stabilized Gimbal Assembly (SGA) :13” d x 15.5” h (330 mm x 394 mm), cylindrical volume 360° AZ continuous, +60° to -60° EL
Interfaces: RS-232, RS-422, Analog (NTSC & PAL)
Power: 18-30 VDC
Environmental
Standards :MIL-STD-461, MIL-STD-810, MIL-STD-704E
Ergonomic, Ruggedized Control Unit Options
Backlit, hand control unit NVIS compatible and fully sealed design (HCU)
