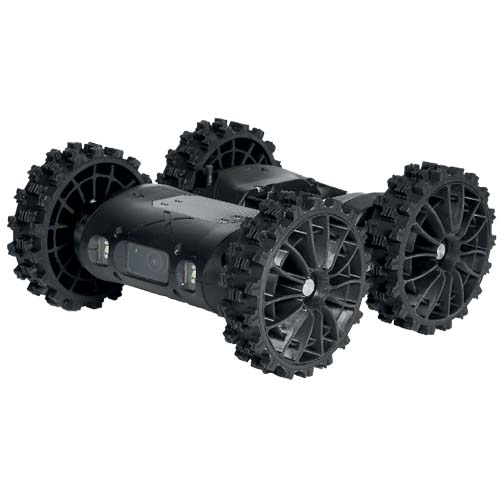

Nexter Robotics NERVA LG UGV

Nexter Robotics NERVA LG

Whether you require observation, detection, localisation, or mapping, the NERVA LG system can help you achieve your goals with maximum flexibility. Swap payloads in 5 seconds. The NERVA® LG will automatically detect and interact with the new module.

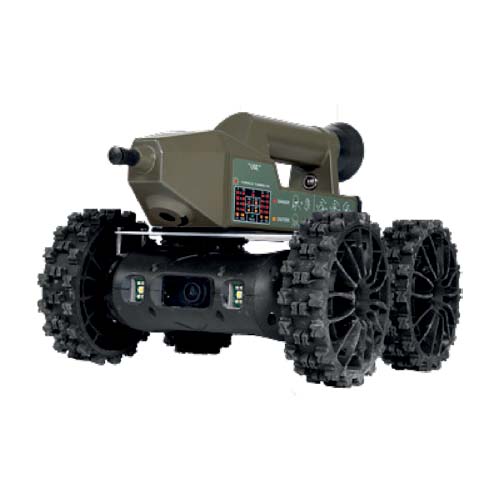

NERVA LG Payload - Chemical Sensor

This module has a μ-camera and dedicated functionality for capturing sensor displays and embedding them in the control station’s video. Use your own hazardous materials detector on your robot, including MultiRAE, Smith Detection, Radiac, TIC, TIM, VOC, Radiological, and Temperature/Humidity.

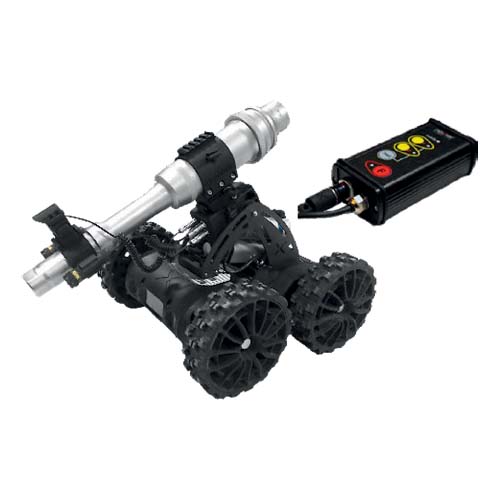

NERVA LG Payload - Disruptor

The Disruptor is used for explosive ordnance or threat disposal. EOD and IEDD capabilities.

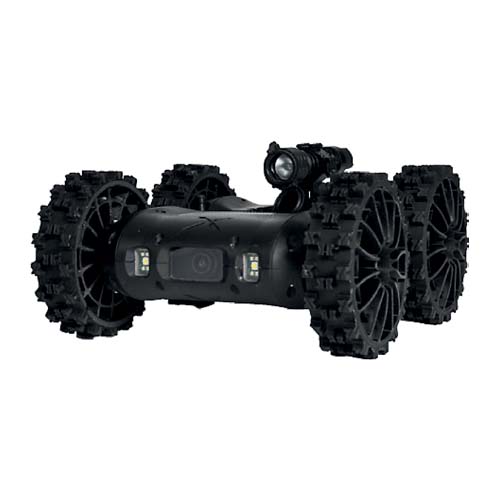

NERVA LG Payload - Generic Support

Standard module, 1-click plug & play, with a short picatinny rail that can be fitted with any compatible equipment, including an IR lamp or visible light producer, laser designator, rangefinder, and more.

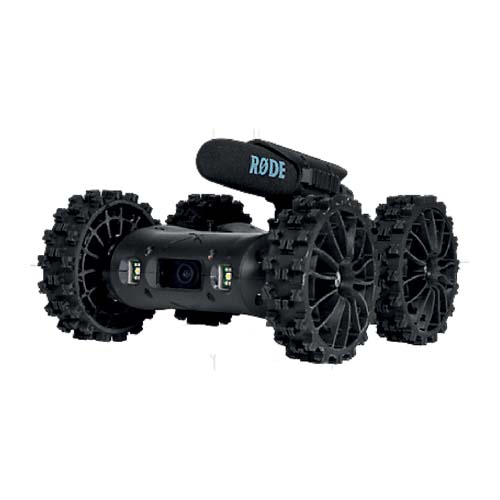

NERVA LG Payload - 2-Way Intercom Audio

Users, often Police, first responders or SAR teams can use this module to communicate remotely with a third party.

It combines a high-sensitivity microphone with a powerful speaker, which means that it can also play pre-recorded sounds or messages.

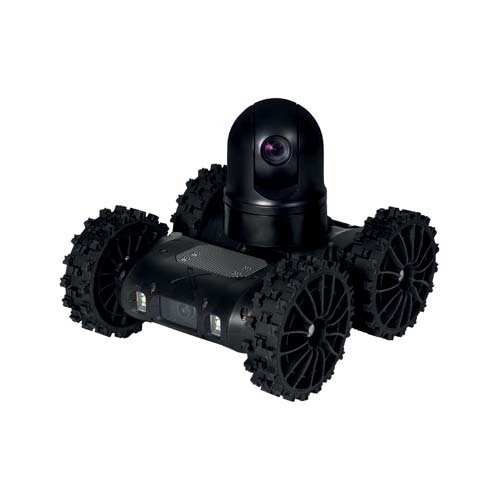

NERVA LG Payload - PTZ Camera

Motorised observation PTZ  (pan, tilt, zoom) camera with two axes Site: -30° / +90° Bearing: 360 degrees.

The rotation speed is 50° per second. High sensitivity daytime camera Optical zoom: 36x.

This PTZ camera also comes in a day/night variant (colour and thermal images).

The PTZ camera is intended for long-distance surveillance, licence plate detection, and other applications.

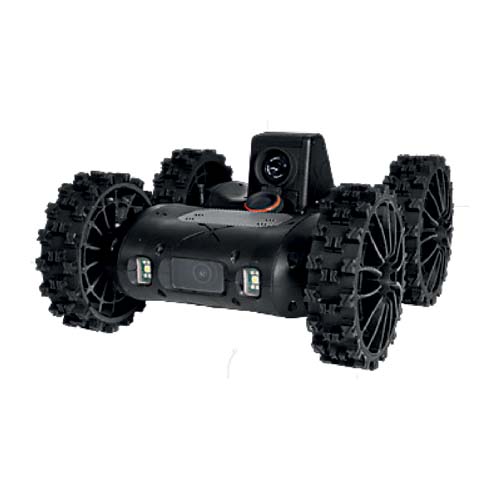

NERVA LG Payload - Thermal Camera

• 8-12 μm band
• Uncooled imager, 640 x 480 pixel resolution
• Thermal sensitivity < 50 mK
• Frequency: 9 Hz (standard; 25 Hz on request but ITAR licence required)
• Focal length to be specified at time of order, available from 7.5mm to 25mm.
• Horizontal field of view from 90° to 25° respectively.
• NERVA-LG Plug & Play

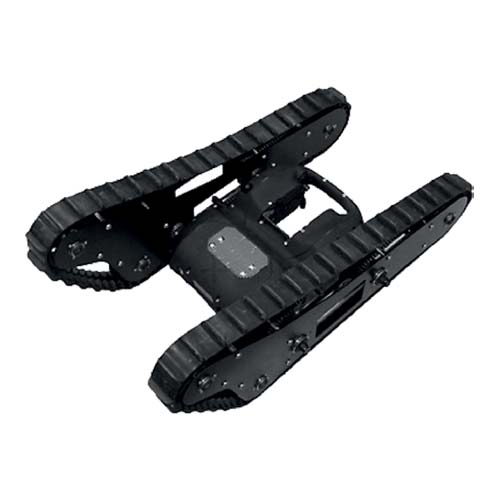

NERVA LG Payload - Tracks Kit

Tracks kit designed for climbing stairs and navigating in urban environments – negotiating pavements, curbs, steps, etc.). Fitted with just 1-click. Can be completed in the field, with no special tools or equipment.

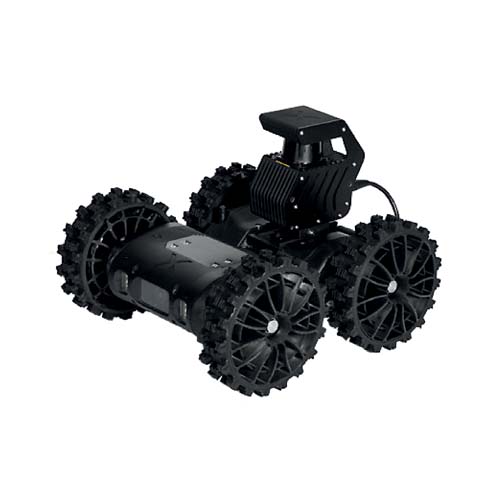

NERVA LG Payload - 2D Mapping

The 2D Mapping payload provides the NERVA-LG with a fully automated mapping and exploration capability. Placed in any location, the robot explores the entire space and builds a 2D map, as it goes. The subsequent map is stored and displayed on the Command and Control Station.  The plotted map can be used to identify areas to further explore and guide the NERVA-LG to them. Allows entry of waypoints and patrol paths. Input waypoints can trigger automatic activities such as taking a picture, or recording a video.

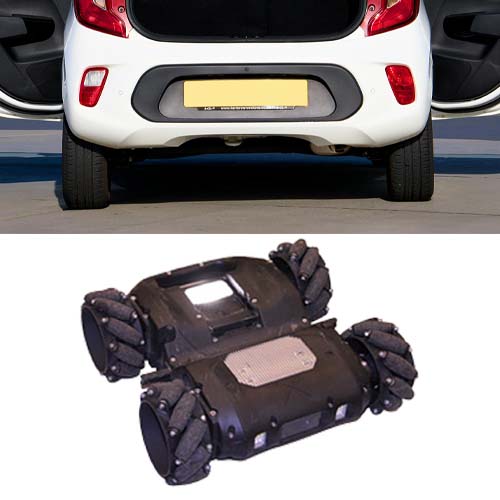

NERVA LG Payload - Under-Vehicle Inspection

An advanced under-vehicle inspection payload designed to enhance security by providing high-resolution imaging and automated detection of threats or anomalies beneath vehicles.

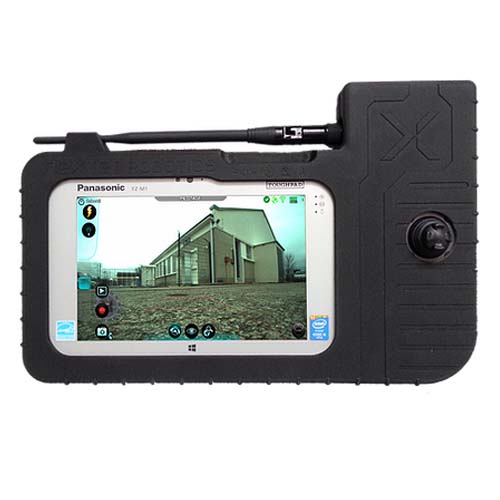

NERVA LG - Command Controller

The Nerva LG Command Controller is a centralized interface that enables operators to efficiently manage, monitor, and control Nerva LG inspection systems, ensuring streamlined security operations and rapid response to detected threats.
