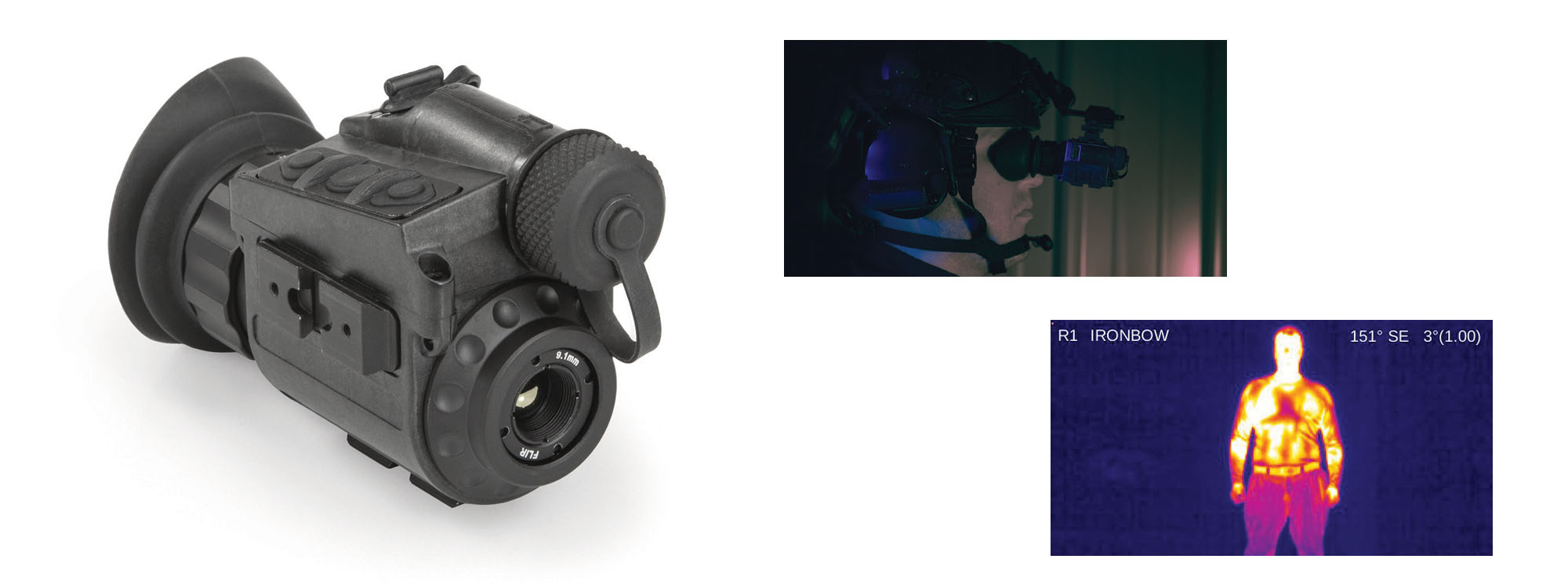

FLIR Breach is built with law enforcement professionals in mind. At only 210 grams, it adds minimal weight and can be concealed in a pocket or be mounted to a helmet with its mini-rail feature.
It is powered by the new FLIR Boson core, and packs several features, such as crisp image, onboard recording and seven palettes to give a tactical advantage by fast detection of suspects or evidence, day and night.
Detector Type: 320 x 256 VOx Microbolometer
Refresh Rate: 60 Hz
Start Up: < 1.5 seconds
Image Processing: FLIR Proprietary Digital Detail Enhancement™
Lens system: 9.1 mm; F/1.04
Optical magnification: 1×
Field of View (H x V): 24° × 19°
Digital e-Zoom: 1× – 4× continues
Diopter Adjustment Range: -5 to +5 dpt
Focusing Range: 0.25 m to infinity
Eye Relief: 16 mm
Display: Quad-VGA (1280 x 960) FLCOS
Video Output: Digital Video (video frame rate 30 Hz)
Internal memory: Up to 1000 images and 2.5 hours of video on internal memory
Temperature Imaging Modes (Image Palettes): White Hot, Black Hot, Rainbow HC, Ironbow, Sepia, Artic, Outdoor Alert
USB-C Connector: Power In; Video out; Video and image files transfer
Battery Type: One CR123A 3V Lithium battery
Battery Life (Operating): Up to 90 minutes at 20°C
USB Power: 5 VDC
Operating Temperature Range: -20°C to +50°C (-4°F to +122°F)
Weight: 210 g (0.46 lbs)
Size: 139 × 70 × 49 mm
Built to equip law enforcement professionals with superior thermal surveillance, the FLIR Scion™ PTM packs high performance thermal imaging and FLIR TruWITNESS® compatibility into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.
The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic Pairing the Scion PTM with FLIR’s innovative TruWITNESS platform links powerful thermal imaging with other smart sensors on the ground, in the air, and everywhere in-between, providing enhanced situational awareness and real-time centralized information for public safety agencies.
Securely stream real-time thermal video to the command center via networked devices Polished internal menus allow rapid switching between six different thermal palettes and provide easy access to advanced features. GPS geotagging, onboard recording, and expandable microSD™ storage offer superb evidence review options while a rugged, IP67-rated housing protects key components in vital situations.
Sharp, 60 Hz thermal imaging powered by FLIR’s breakthrough Boson thermal core FLIR outfits law enforcement professionals with tools to counter unseen threats. Able to perform at any time of day, thermal imaging pierces complete darkness, glaring light, and lingering haze to provide superior awareness in difficult conditions. The advanced image processing of FLIR’s Boson thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.

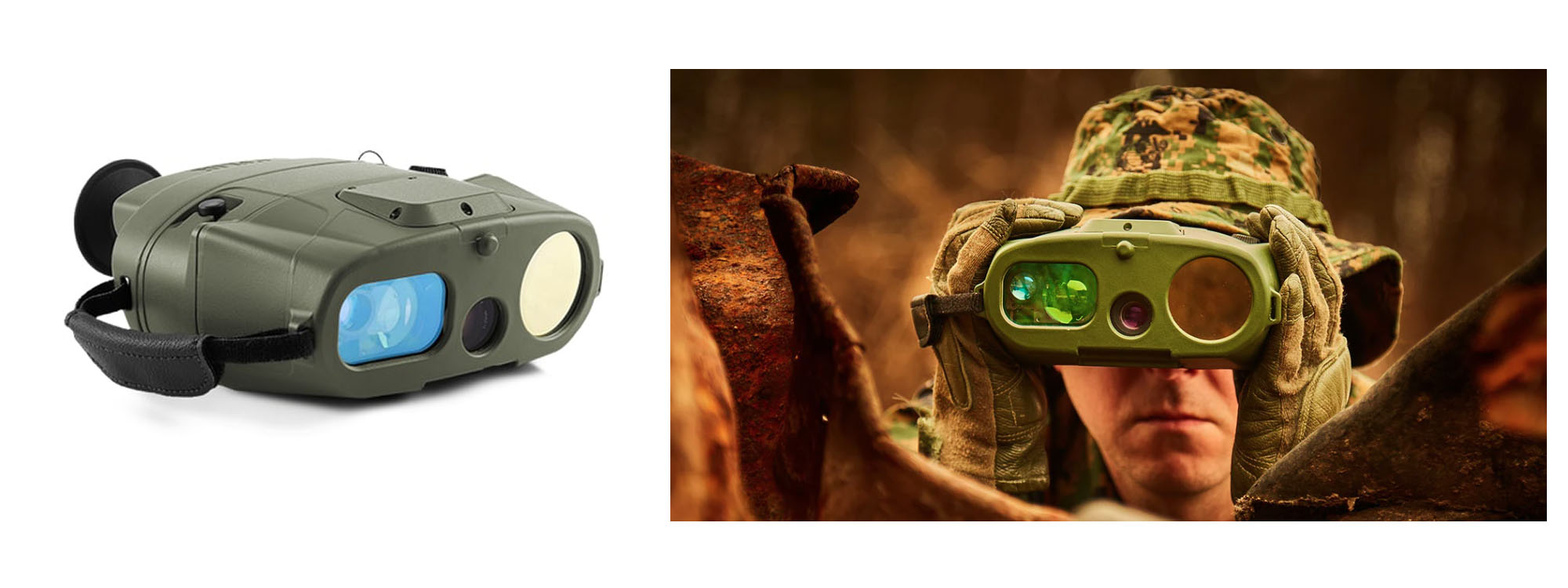

Ultra-Lightweight Multi-Spectral Imager
Fully operational at less than 1.5 kilograms, the breakthrough Recon V Ultra Lite provides long-range target detection, recognition, recording and geo-location with an HD colour camera and dual FOV thermal channels. Powered by commercially available AA batteries, the unit has a run time greater than four hours with smart power management. Combined with a highly accurate laser range finder, GPS, digital magnetic compass and intuitive user interface, targets can be quickly located 24/7.
Essential to expeditionary ground forces, Recon V Ultra Lite helps to quickly determine intent or IFF for unknown targets. With day and night capabilities, a quick-shot LRF instantly generates target geo-location data to accompany imagery that can be shared with ground forces through Bluetooth, Wi-Fi or hardwired USB connections to peripheral devices. While operators provide mission critical situational awareness data, they remain safe by always being connected to their extended team
BEST-IN-CLASS IMAGING
Combining the latest 12-micron thermal imaging sensor with industry-leading processing and an HD colour display, Recon V Ultra Lite provides outstanding image quality for positive target identification in daylight and thermal channels.
RAPID TARGET CLASSIFICATION
7.2x magnification, digital magnetic compass, GPS, and laser rangefinder provide accurate range-to-target and geo-location.
DESIGNED FOR INDIVIDUAL FIELD OPERATORS
Light and easy to use, Recon V Ultra Lite minimizes operator fatigue and is rugged enough to survive the most demanding field missions.
ACUTE SITUATIONAL AWARENESS
Video, still imagery and data can be recorded or output via Bluetooth, Wi-Fi or USB hardwired connections to supporting field elements for real-time situational awareness.
EASY, INTUITIVE OPERATION
An intuitive interface bypasses overly complex dropdowns in favour of a quick-shot LRF and pushbutton image and video capture, reducing training time and improving usability in high-stress field operations.
Reconnaissance
Surveillance
Forward Observation
Force Protection
Military/Police Security
Thermal Imaging Channel
Sensor type: 640 x 512 format, LWIR 8-12μm
Super wide FOV: 12.2° h x 6.9° v
Wide FOV: 6° h x 3.3°v
Narrow FOV: 4.5° h x 1.6° v
Frame rate: 60Hz
Automatic features: Digital Detail Enhancement (DDE)
High Definition Colour Channel
Sensor type: High definition colour CMOS
Pixel format: 5 megapixels (2592 x 1944 resolution)
Wide FOV: 6° h x 3.3° v
Narrow FOV: 3° h x 1.7° v
Frame Rate: 60 Hz
Automatic features: AGC, white balance
System Features
Laser Rangefinder (LRF): 1.54 μm, >10 km range, eyesafe
Display: High definition colour OLED, 1280 x 720p
Image presentation: Monochrome, colour, 16:9 aspect ratio
Image controls: Polarity, colour palettes, DDE, AGC, reticle select
Camera controls :Sensor select, FOV, LRF fire, NUC, BIT
Power
Power requirements: 6 VDC/ 10 W (9 V to 32 VDC external)
Battery type: 4 AA Lithium L91, 4 hour run time at 23°C
Power saving mode: Auto shut off, user selectable time
Extended Run Time: >48 hours on B/A-5590 external battery
Environmental
Military Standards: MIL-STD-810G
Weight: <1.5kg including batteries
Mounting: Tripod mount 1/4-20 base
Dimensions: 215 x 171 x 84mm
System Accessories
Soft carry case: Lightweight and padded with carry strap
AC power adapter: 110 VAC/220 VAC power supply (optional)
Batteries: 8 each, AA Lithium L91
Lens cleaning: kit Cleaning kit in nylon pouch
Manual: Operators manual and quick reference card
System Configuration Options
Laser pointer :850nm, .6mW training mode/30mW maximum in tac mode
Global Satellite Nav System (GNSS): Navstar GPS, Galileo, Glonass
Digital Magnetic Compass: 0.6° (RMS) calibrated accuracy
Video Output: Digital video, Wi-Fi
Geo-Location: Auto generated with LRF fire
Image and Video Storage: 1000 jpeg images, up to 8 hours video storage
USB Interfaces: Remote control, image and video download
Cables: USB, remote power
Wireless connectivity: Wi-Fi, Bluetooth, NFC

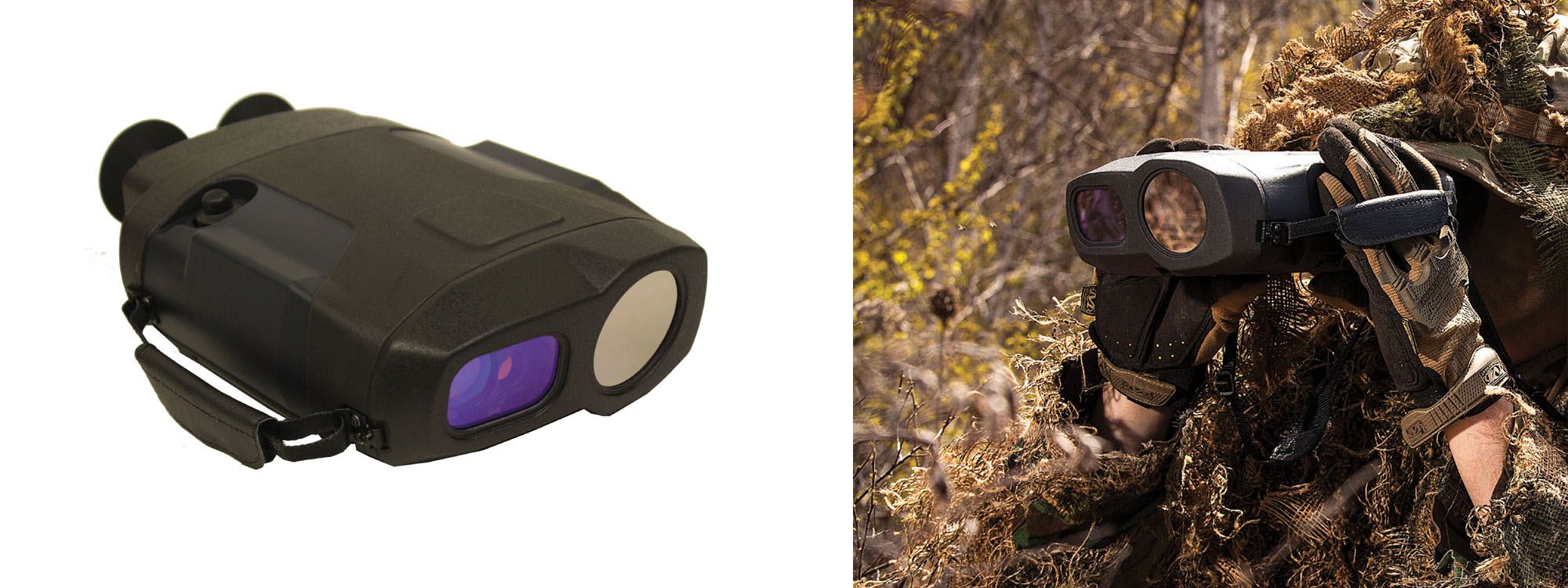

Thermal Binocular with EO, Laser Rangefinder and laser Pointer
The Recon® V is a compact and light yet rugged multi-sensor thermal binocular designed for 24/7 day and night field operations that require enhanced imagery and long standoff range. Its internal GPS, DMC, and long-range laser pointer provide accurate range to target as well as precise location. The 10x continuous zoom optics, MEMS-based electronic stabilization, and high-definition colour video display combine to provide unmatched image quality and flexibility.
Powered by AA Li batteries, the unit has a run time of up to six hours. It’s SWaP-optimized and qualified to MIL-STD 810G for easy portability under rigorous mission demands. An intuitive interface reduces training time and simplifies usability in high-stress field operations. While operators provide mission-critical situational awareness data they remain safe by always being connected to their extended team.
BEST-IN-CLASS THERMAL IMAGING
Combining 640×480 MWIR image quality with industry-leading processing and a high-definition display, Recon V provides the clarity your mission demands.
POWERFUL TACTICAL CAPABILITIES
Built-in stabilization, digital magnetic compass, GPS, and laser pointer provide accurate range-to-target, precise geo-location, and rock-solid imagery.
FLEXIBLE, TOUGH, AND POWERFUL
SWaP-optimized and easy to use, Recon V minimizes operator fatigue and is rugged enough to survive everything your mission may throw at it.
INCREASED SITUATIONAL AWARENESS
10x continuous zoom provides long-range narrow FOV as well as wide-angle FOV for battlefield flexibility.
EASY, INTUITIVE OPERATION
An intuitive interface includes electronic stabilization (E-Stab), one shot image save, auto fall-of-shot, auto image optimization, auto focus and BIT, reducing training time and improving usability in high-stress field operations.
APPLICATIONS
Reconnaissance
Surveillance
Forward Observation
Force Protection
Military/Police Security
Thermal Imaging Performance
Sensor type: 640 x 480 InSb
Wavelength: 3.4 – 5.1μm
Cooler: Sub-Micro IDCA
Telescope: 10X Zoom 27-275mm
WFOV: 20° x 15°
NFOV: 2° x 1.5°
Display
Display Type: OLED, Full Colour
Display Resolution: 1280×720, (720p) 16:9
Frame Rate: 60Hz
Image Controls: Cal, Pol, Auto/ Man Gain, Display, Auto Focus, Palettes
Symbology: Reticles, Battery Icon, Azimuth, Time/ Date
System Features
Global Positioning System (GPS): C/A code
SAASM: GPS supports military GPS plug-in (optional)
Digital Magnetic Compass: 360° Az, +/- 90° El, 0.2° resolution
Laser Rangefinder (LRF): 1.54 μm, Eyesafe, class 1, 10km
Laser Pointer (LP): 852 nm, Class 3B, .5/30mW (optional)
Image Storage: Yes, 1000 png
E-Stabilization: MEMS Gyro, No image latency
Physical
Battery Type:AA Lithium
Run Time: 6 hours (Hot Swap)
External Power: 9-32VDC
Weight: 4.25 lbs (1.9kg) with batteries
Dimensions: 8.7 x 7.4 x 3.5 (225Cu in)
Interface
Video: NTSC/ PAL & HD-SDI
Serial Interfaces: 1 ea. RS-232 (DAGR)
Serial Interfaces: 2 ea. RS-232 or RS-422
Standard package
Hard Case: Ruggedized Shipping Case
Soft Case: Padded Carry Bag
Batteries: 2 sets, AA Lithium
Manuals: Operational, Quick Reference Card
Lens Kit: Cleaning Cloth, Brush
Video Cable :Standard HD-BNC
External Power: B/A-5590 Power Cable
AC Adapter: Power Supply with Cable
Optional Accessories
Remote LRF Cable: Cabled Remote to fire LRF
Communications Cable: Download images, video out
DAGR Cable: Use to connect to DAGR GPS
