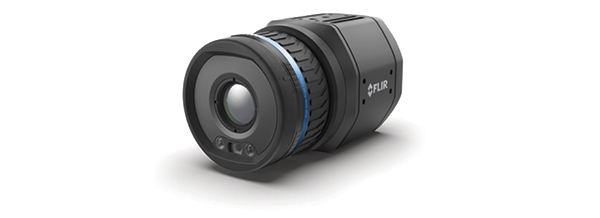

FLIR A400/A700™ SERIES

THERMAL SMART SENSOR CAMERA
Suitable for measuring elevated skin temperature, to assist with Covid-19 monitoring.

The FLIR A400/A700-Series, when configured for Smart Sensor capabilities, offer advanced thermal imaging paired with edge computing and industrial internet of things (IIoT) for simplified inclusion in new or existing networks. With multiple field-of-view choices, motorized focus control, and unrivaled network connectivity, these automation cameras can tackle the most complex remote monitoring, alarming, and analytics objectives. Automation system solution providers get a running start with a camera that is easy to add, configure, and operate in HMI/SCADA systems. FLIR A400/A700-Series cameras can be used for a wide range of applications, including screening for elevated skin temperature as an adjunct to other body temperature screening tools, monitoring critical infrastructure, assessing product quality, or detecting potential signs of heat build-up.

FLEXIBILITY FOR EASIER INTEGRATION
Unrivaled network connectivity and built-in computing options

  • Superior connectivity* through features such as Wi-Fi†, Modbus TCP, and EtherNet/IP— both of which simplify integration into HMI/SCADA systems
  • Prepares for digitalization through MQTT protocol
  • Integrates easily into web services with the REST API over XML or JSON

FLIR INNOVATIONS FOR SMARTER RESULTS
Tailor thermal imaging monitoring for any site’s unique requirements

  • Improves definition of areas of interest and object analysis with the polygon line function*
  • Includes options to adjust temperature measurements and alarms based on a reference temperature source*
  • Superior I/O control via Modbus TCP Master* enables integration with industrial automation systems using analog and digital control
  • Compressed radiometric streaming* cuts bandwidth by 90%, making it possible to connect cameras and share data via Wi-Fi†

FEATURES
Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Base Mounting: 4× M4 on 4 sides
Encoding: GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric
Housing material: Aluminium
IR Resolution: 320 × 240
Object Temperature Range: -20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F), 300°C to 2000°C (572°F to 3632°F)
Size (L x W x H): 123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)
Thermal Sensitivity/NETD: Lens dependent
Weight: 0.82 kg (1.8 lb), camera only
Contrast Enhancement: GVSP video streaming: FSX® / Histogram equalization (IR only)
Multi-Streaming: No, one stream only
Screen EST Mode: No

« »
