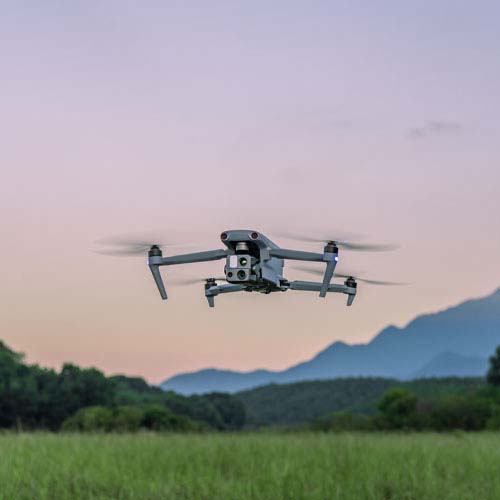

EVO Max 4T

A Leader of Drone Intelligence.

The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

Autonomous Path Finding

Autel’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Navigation in GPS Denied Environment

Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.

Accurate Object Identification and Tracking
Based on Autel’s AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.



Evo Max is compatible with many accessories:

  • Gimbal
  • EVO Max 4T Zoom Camera (Telephoto)
  • EVO Max 4T Thermal Camera
  • EVO Max 4N Starlight Camera
  • EVO Max 4N Thermal Camera
  • Wide Camera
  • Laser Rangefinder
  • Image Transmission
  • Millimeter-wave Radar Sensing System
  • Visual Sensing System
  • Radar and Visual Sensing Systems
  • Autel Smart Controller V3
  • Aircraft Battery

SPECIFICATIONS

EVO Max 4T

Battery Max Capacity: 8070 mAh



EVO Max 4T Weight

3.57 lbs (1620g, battery and gimbal included)



EVO Max 4N Weight

3.62 lbs (1641g, battery and gimbal included)



Max. Takeoff Weight

4.41 lbs (1999 g)



Dimensions:

562*651*147 mm (unfolded, incl. propellers)  318*400*147 mm (unfolded, excl. propellers) 257*145*131 mm (folded, excl. propellers)



Diagonal Wheelbase

1.53 ft (466mm)



Max Ascent Speed

8m/s



Max Descent Speed



6m/s



Max Horizontal Speed (windless near sea level)

23m/s *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.



Max Takeoff Altitude

13,124ft (4000m)



Max Flight Time (windless)

42 mins



Max Hovering Time (windless)

38 mins



Max Wind Resistance



27mph*



*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).



IP Rating IP43





Max Tilt Angle 35°



Max Angular Velocity Pitch: 300°/s; Yaw: 120°/s



Operating Temperature

-4°F to 122°F (-20℃ to 50℃)



Internal Storage

128GB internal storage, with 64GB of available space* (Remaining available space will vary with different firmware versions)



Operating Frequency

2.4GHz/5.8GHz

5.2GHz (only applicable for FCC, CE, and UKCA regions).

900MHz (only applicable for FCC regions).



GNSS

GPS+Galileo+BeiDou+GLONASS

Transmitter Power (EIRP)

2.4GHz: <30dBm (FCC), <20dBm(CE/SRRC/MIC)

5.8GHz: <27dBm (FCC/SRRC), <14dBm (CE)

5.15-5.25GHz: <23dBm (FCC/CE)

902-928MHz: <30dBm (FCC)

5.65-5.755GHz: <27dBm (MIC)



Hovering Accuracy

Vertically:

±0.1 m (when vision systems working normally);

±0.5 m (when GNSS working normally);

Horizontally:

±0.3 m (when vision systems working normally);

±0.5 m (when GNSS working normally);



Wi-Fi Protocol

802.11a/b/g/n/ac/ax

Support 2 x 2 MIMO Wi-Fi



Wi-Fi Operating Frequency

2.400 – 2.4835 GHz;

5.150 – 5.250GHz (CE/FCC/MIC);

5.725 ‒ 5.850 GHz*(Except MIC)



Wi-Fi Transmitter Power (EIRP)

2.400 – 2.4835 GHz

FCC:<30dBm; CE/SRRC/MIC:<20dBm

5.150 – 5.250GHz

FCC/CE/MIC<22dBm

5.725 ‒ 5.850 GHz

FCC/SRRC: <21dBm

CE: <14dBm
